|Model Number:||BD630-3||Product Name:||Compact Smart Office Multi-function Socket|
|Material:||Zinc Alloy||Button:||Oval Pop Up Button|
|Corner:||Oval Corner||Application:||High-class Office Conference Table|
|Cable Length:||30 Cm Connection Wires Plugs||Configuration:||2*universal Power+2*Network +1*VGA+1*Audio+1*High DMI+1*USB|

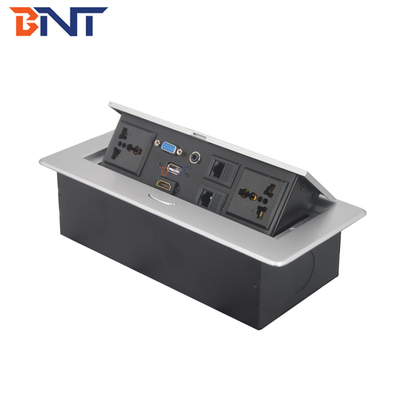

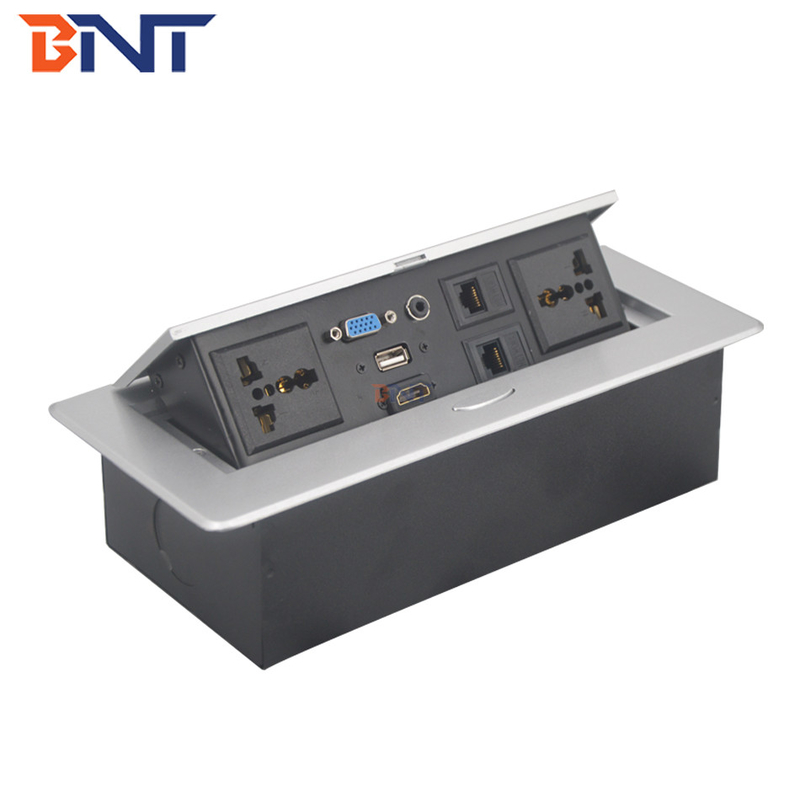

hot sale product zinc alloy material desktop pop up power media socket BD630-3
BNT BD seriers
Conference tabletop hidden pop up socket, one modern office conference room multio-function AV power connector solutions. This socket normally contain the office high-quality projection audio video connected function for HDMI,VGA, Audio and Video.What's more, it normally supply with the universal power outlets which can fit for every difference power plugs.
This socket normally mount on the table and all connectors and hidden under the surface zinc alloy panel. Could save more space and keep table integral and conforming. To supply a fashion and modern environment for office and meeting room.
1, Normally install desktop power plug on office furnishes, like office desk, meeting table or other office worktop.
2, Hidden socket into table underside to keep desktop surface more neat, modern and save more space.
3, Just press the product button, the spring inside the socket box will pop all media socket with plat up to the tabletop, user could plug each connector directly.
4, Panel surface made of zinc alloy material with anode oxidation process, bottom case made of steel material, powering with black color. Antioxidative and won't loose color.
5, Rectangle high-thick 3mm surface panel, not easy to scratch and bend
6, Smart and compact, easy to installion and operation, can supply with power or other AV configuration.
7, Supply with difference connection wire plugs as requirement.
8, OEM / ODM with difference modules and logos accordingly.
|Product name||Compact smart office multi-function socket|
|Button||Oval pop up button|
|Color||Black / Silver|
|Cable Length||30 cm connection wires plugs|
|Application||High-class office conference table|
|Configuration||2*universal power+2*Network +1*VGA+1*Audio+1*High DMI+1*USB|
|Rated voltage||110 ~ 240 VAC|
|Rated current||10 ~ 16 A|
|Rated power||3680 W|
|Differnece module||Yes, supply with difference module as need|
|OED / ODM||Yes|
1, Cut a size suitable square hole for your desktop.
2, Insert the panel through the hole and adjust the position to fix the table board properly.
3, Put the fasteners into the notches of the frame and then fix them with screws at the bottom of the table board.
4, Fix the cables with clamps and screws, a proper cable length should be extended for the panel movement.
