Product Details:
|
| Product Name: | Feedback Suppressor | Color: | Black |
|---|---|---|---|
| Channel: | 6-channel | Output Voltage: | 48V Output Phantom |
| Power Supply Mode: | AC ~ 220V-230V, 50 / 60Hz | Output Current: | 6.5mA |
| Frequency Shift Amount: | 5Hz ± 1Hz | Transmission Gain Increase: | 5-14dB |
| Shifting State: | 20Hz-20KHz | Feature: | With Screen Display |
| Highlight: | audio technica conference mic,wireless microphone for conference room |
||

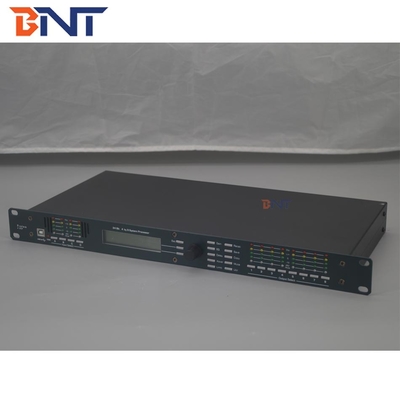

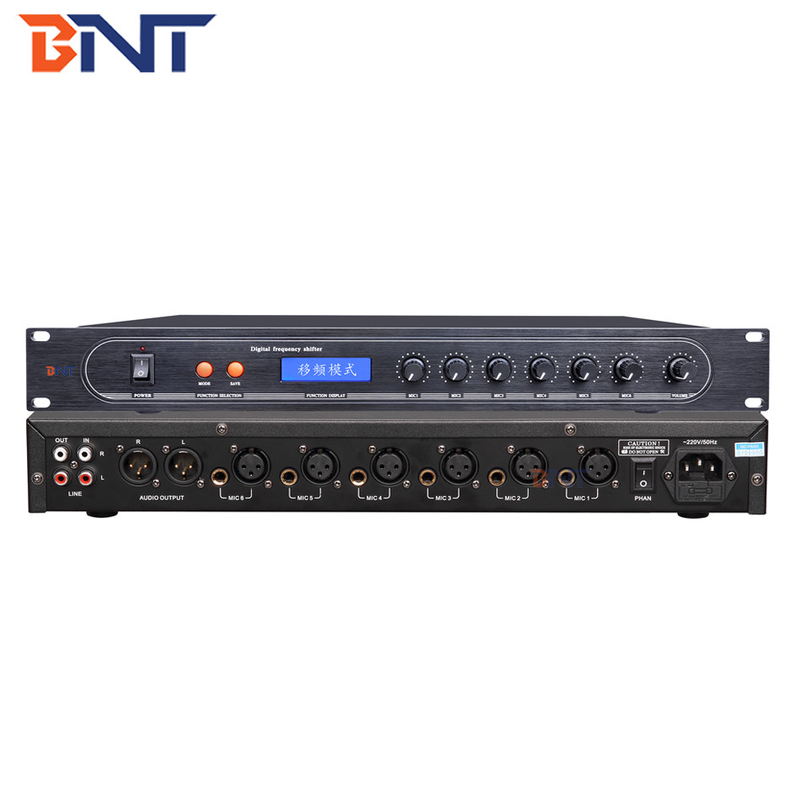

Conference meeting feedback suppressor 6 channels audio processor BNT-1220
| Model: | BNT1220 |
| Product name: | 6-way Frequency Shifter(with screen display) |
| Output voltage: | 48V output phantom |
| Power supply mode: | AC ~ 220V-230V, 50 / 60Hz |
| Output current: | 6.5mA |
| Microphone connection matching: | phantom and non-phantom powered microphones |
| Frequency shift amount: | 5Hz ± 1Hz |
| Transmission gain increase: | 5-14dB |
| Line input impedance: | ≥5KΩ |
| Line output impedance: | ≤600Ω |
| Frequency response: | Non-frequency |
| shifting state: | 20Hz-20KHz |
| Frequency shifting state: | 150Hz-15KHz |
| Microphone connection: | 6-way kalong female socket |
| Weight: | 2.60KG |
| Specifications (length * width * height) mm: | 1U case 420 * 205 * 44 |
| External input connection | 6-way microphone card dragon, line lotus mono, effect mono |
| Output connection: | Caron balance, line lotus mono, effect mono |
| Function: | 1 external frequency shift manual switching, 6 microphone frequency shift manual switching, 6 microphone phantom power selection |
| Power: | 15W |
| Switch / Indication: | Boat type switch, panel power indicator, frequency shift switching instruction |
| phantom and non-phantom powered microphones | |
| Digital mode function key selection | |
| Six phantom powered microphone inputs | |
| Six-way microphone phantom power independent switch selection | |
| Six-way microphone and line input frequency shift effect independent switch selection | |
| Microphone independent adjustment | |
| Local speaker of conference system realizes independent effect connection port (EFX) | |
