Bo Ente Industrial Co., Limited
Office System Audio Video Equipment Supplier
|Place of Origin:||China|
|Minimum Order Quantity:||1 sets|
|Packaging Details:||1 set per carton, 77*76*27cm|
|Delivery Time:||7-10 days|
|Payment Terms:||T/T, L/C,T/T, Western Union, MoneyGram, Paypal|
|Supply Ability:||800 sets per month|
|Material:||Carbon Steel||Item Name:||LCD Motorized Lift For Monitor|
|Suitable Screen Size:||21~24inch LCD/LED Screen||Panel Size:||66*14.5cm|
|Panel Thickness:||3mm||Box Size:||64.8*13*62.5cm|
|Lifting Size:||59*7.5cm||Tilting Angle:||15 Degree|
|Control System:||Switch/ Remote / RS232||Application:||Commercial Office/ Meeting Room|

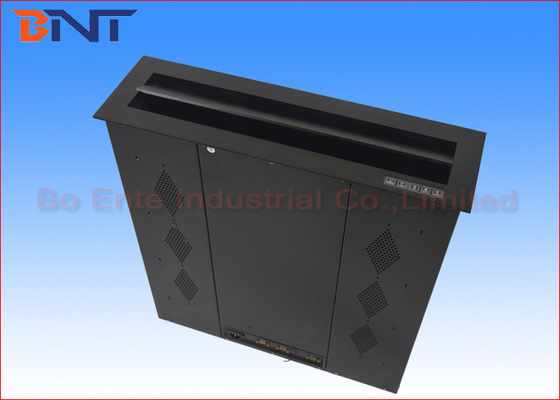

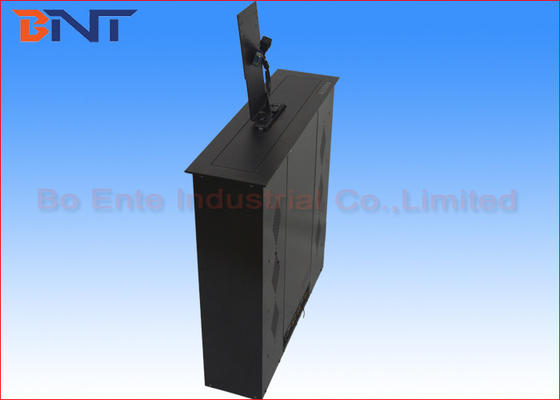

Commerical Meeting Table Used Pop Up LCD Motorized Lift For 19~24 Inch LCD Screen
LCD Motorized Lift system is designed for advanced conference system. When ordinary meeting, the LCD monitors are inside the LCD Lift to keep the tabletop even and neat; when multimedia meeting, the LCD monitor can be lifted up separately, group or all display the multimedia information including meeting content, information hint and picture information,sound, video and audio. It is widely used for video conference system, TV conference system, and financial analyzing system and other commercial office or meeting room.
The product adopts synchronous orbit lifting principle. It runs smoothly, quietly, and provided with the protection function for LCD monitors by cutting the power off automatically. The machine is controlled by three motors: one controls the angle adjustment of the monitor. The panel switch adopts the durable and excellent material’s nice-looking film switch.
The product support RS-485 communication protocols. It can be distantly controlled by central control. It supports wireless connection too, possessing the function of organizing the monitors into groups freely.
1, High quality circuit board & superior motor to offer long working life
2, Equipped with VGA or HDMI, RS232 data interfaces for convenient data access.
3, Smart circuit board offer monitor protection, monitor could be power on once arrived the desktop, monitor could be power off if reach the bottom.
4, Made of 3mm thick carbon steel brushed panel, provided elegant and high grade appearance
6, Provides 15 degree screen adjustable angle for prefect reading area during meeting.
7, Adopt powerful motor,working smoothly and quietly, single lifting time could less than 20s.
8, Complicated with AMX/Crestron or other central controller via RS232, RS485 port.
1, Electric control, lifting comfortable, height-adjustable.
2, Flexibility, stability, good shockproof performance.
3, Suit for 19~22 inch LCD monitor of various brands.
4, Automatic opening and closure of decorative panels, carbon steel drawing panel, angle regulate automatically.
5, Very easy operation for anyone to control all lifts UP/DOWN/STOP together by one remote controller.
6, Wireless central control: support RS232, RS485.
7, Tilting angle: ±15 degree
|Item Series||LCD Monitor Lift|
|Item Name||LCD motorized lift for monitor|
|Products consitute||motorized lift + remote control|
|Match Monitor Size||59*70cm (without monitor stand)|
|Tilting angle||0~15 degree|
|Single trip time||20-30s|
|Control Way||touch switch, remote control, RS232 port|

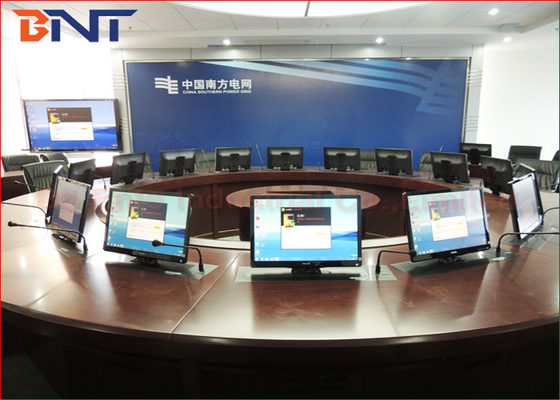

Pop up LCD monitor lift was widely used in commercial office, like meeting room, conference room. Work with monitor, conference system microphone, camera, central controller, projector, projector screen in all audio video conference system projects.
