220 - 240 Volt Office LCD Motorized Lift With Discussion Microphone

220 - 240 Volt Office LCD Motorized Lift With Discussion Microphone

    • 220 - 240 Volt Office LCD Motorized Lift With Discussion Microphone
    • 220 - 240 Volt Office LCD Motorized Lift With Discussion Microphone
    • 220 - 240 Volt Office LCD Motorized Lift With Discussion Microphone
    • 220 - 240 Volt Office LCD Motorized Lift With Discussion Microphone
  • 220 - 240 Volt Office LCD Motorized Lift With Discussion Microphone

    Product Details:

    Place of Origin: China
    Brand Name: BNT
    Certification: CE/RoHS/UL/3C/SASO
    Model Number: BML2-17

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 sets
    Price: Negotiable
    Packaging Details: 1 set per carton, 65*27*75cm
    Delivery Time: 7-10 days
    Payment Terms: T/T, L/C,T/T, Western Union, MoneyGram, Paypal
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Material: Brushed Aluminum Alloy Style: LCD Motorized Lift For Monitor
    Sizes Available: 17-19 Inch LED Screen Panel Size: 54*14.5cm
    Aluminum Thickness: 5mm Box Size: 46.3*13*57.8mm
    Screen Size: 40.5*7.5ccm Monitor Tilting Angle: 0-15 Degree
    Color: Brushed Aluminum Silver Voltage: 220-240 Volt
    Application: Meeting Room Control Way: Touch Switch

    Brushed Aluminum Finishes LCD Motorized Lift with Discussion Microphone For Meeting Room

    Introduction:
    LCD monitor lift is special designed for the advanced hidden equipment for audio video solutions.User could use the LCD screen for presentation during meeting through control the monitor rising up from table automatically. And control the monitor lifting down into the table bottom after finished meeting.
    It’s widely used in audio video conference system, military command, multimedia education and finance analysis. It provides a convenient and advance solution for meeting, particularly for enormous information presentation, like data, image, sound ect. LCD motorized lift featured by stable performance, automatic operation & space saving. With its smart function, it provides an efficient manner and enjoyable experience in conference communication and information presentation for meeting.

    Feature:
    1, Lifting mechanism working smoothly and quietly during operation. Low noise which less than 30db.
    2, Smart circuit board to control all components working properly. Offer monitor and microphone protection, cut the monitor and microphone electricity down automatically if reach the bottom case. And supply electric to monitor and microphone naturally once arrived the desktop.
    3, Equipped with XRL, VGA or HDMI, RS232 data interfaces for convenient data access.
    4, Aluminum black or silver color are available for normal selection, aluminum gold color could be customized if required.
    5, Constructed with aluminum alloy panel and steel case, adopt imported circuit board, synchronous motor,and gear & rack.
    6, Complicated with conference system discusssion, Crestron central controller via RS232 port.
    7, Superior gear appliance with double rack to ensure steady and reliable lifting for screen without damaged.
    8, Complicated with all brands LCD/LED monitor which bottom side cable connecting

    Selling Points:
    1, 10 year LCD motorized lift producing experience, quality approved with FCC CE ROSH SASO CCC
    2,  5mm aluminum oxidation with drawing polishing surface process to make panel smooth and bright, ensure elegant and high grade appearance
    3,  Constructed with belt gearing and dual rack to ensure stable and reliable monitor lifting
    4,  Adopt shock-proof screw during assemble product to protect it without damaged during transportation.
    5, Could be workable with discussion conference system, wireless mobile phone controller, digital camera, Crestron central controller and other office paperless software
    6, 1 year warranty and free spare part to provide excellent after sale service

    Specification:

    Item SeriesLCD Monitor Lift
    Item ModelBML2-17
    Stylemotorized lift for monitor with microphone
    Products consitutemonitor lift + discussion microphone
    MaterialAluminum alloy finishes
    Panel size540*160mm
    Box size463*130*625mm
    Panel thickness5mm
    Hole for Monitor 460*80mm
    Packing size65*27*75cm
    Voltage110 volt, 220 volt, 240volt
    Power20~25W
    Overturn angle0~15 degree
    Single trip time23s
    Colorbrushed aluminum silver
    Remote distance10m
    Control Waytouch switch, remote control, RS232 port

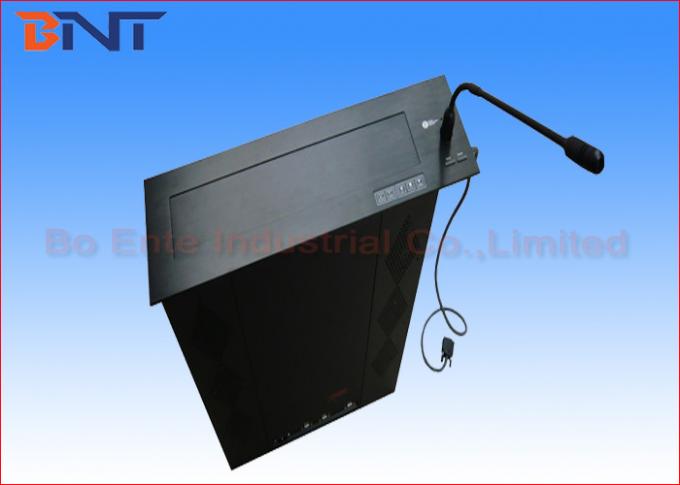

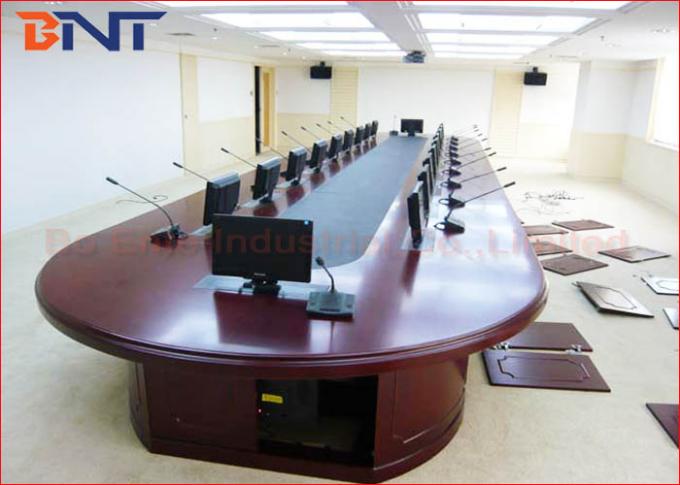

    Product Pictures:
    220 - 240 Volt Office LCD Motorized Lift With Discussion Microphone
    220 - 240 Volt Office LCD Motorized Lift With Discussion Microphone220 - 240 Volt Office LCD Motorized Lift With Discussion Microphone
