|Material:||Stainless Steel||Product:||LCD Motorized Lift For Monitor|
|Size Available:||15-17 Inch Screen||Panel Size:||48*14.5mm|
|Panel Thickness:||0.3cm||Case Size:||46.3*13*57.8cm|
|Screen Required:||Within 40.5*7.5cm||Tilting Angle:||0-15 Degree|
|Application:||Paperless Office Conference System||Guarantee:||1 Year Warranty|
Desktop Pop Up LCD Motorized Lift For 17 Inch All Brands LCD/LED Monitor Screen
LCD motorized screen lift is high technologies lifting equipment for hidden audio video conference system. It could lift the monitor vertical retractable automatically by wireless remote, and make the screen motorized horizontal overturn 45~60 degree. It provides a convenient and advance solution for meeting, particularly for enormous information presentation, like data, image, sound, PPT ect. LCD motorized lift featured by stable performance, automatic operation & space saving. With its smart function, it provides an efficient manner and enjoyable experience in conference communication and information presentation for meeting. The lift mechanism support RS232/RS485 communication protocols. It can be distantly controlled by AMX/Crestron central controller. It supports wireless connection too, possessing the function of organizing the monitors into groups freely.
1, Constructed with stainless steel panel and steel case, adopt imported circuit board, synchronous motor,and gear & rack.
2, Adopting superior gear appliance with double rack to ensure stable and reliable lifting for screen
3, Complicated with paperless office software, Crestron central controller and wireless automatically mobile phone controller.
4, Smart circuit board to control all components working properly. Offer monitor protection, cut the monitor electricity down automatically if reach the bottom case. And supply electric to monitor naturally once arrived the desktop.
5, Easy operation, all lifts could be lifting up and down together at the same by one remote control or touch switch, RS232 central controller.
6, Workable with 15-17inch LED screen for data, image, sound all information presentation.
7, Screen have electric adjustable function, user could make screen to be 0-15 degree position as required.
8, Working smoothly and quietly during operation. Low noise which less than 30db.
1, Provide English button and product identify, Arabic language marking is available.
2, high quality circuit board & motor to offer long working life
3, Equipped with VGA or HDMI, RS232 data interfaces for convenient data access.
4, Packed with strong carton with foam cushion to protect product during transportation. Wood box or wood support is available if required.
5, Offer 1 year warranty and free spear parts for wholesale.
|Item Series||LCD Monitor Lift|
|Product Name||LCD motorized lift for monitor|
|Products consitute||LCD monitor lift + Remote control|
|Screen size requirement||within 405*78mm|
|Monitor overturn angle||0~15 degree|
|Single trip time||28s|
|Color||brushed black matte|
|Control Way||touch switch, remote control, RS232 port|

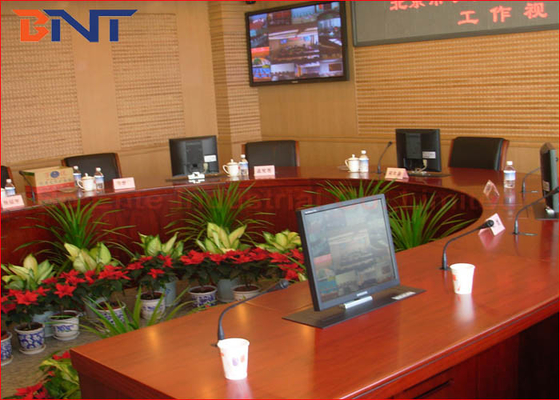

LCD Monitor Lift is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.
