Payment & Shipping Terms:
|Style:||Flip Up Cable Cubby||Module:||BB603|
|Color:||Black||Material:||Aluminum Alloy Brushed|
|Application:||Office Tabletop Furniture||Panel Thickness:||3mm|
|Panel Size:||266mm * 130mm||Box Size:||253mm * 115mm * 78mm|
|Grounding:||Standard Grounding||Power:||Universal Power|
|Configuration:||RJ45 / HDMI / VGA / MIC / RCA / Audio 3.5|

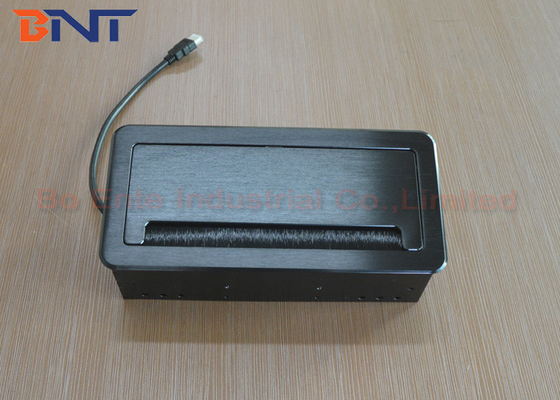

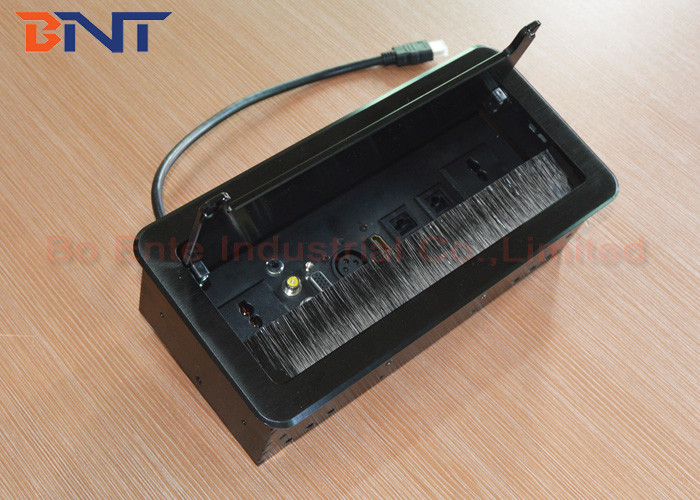

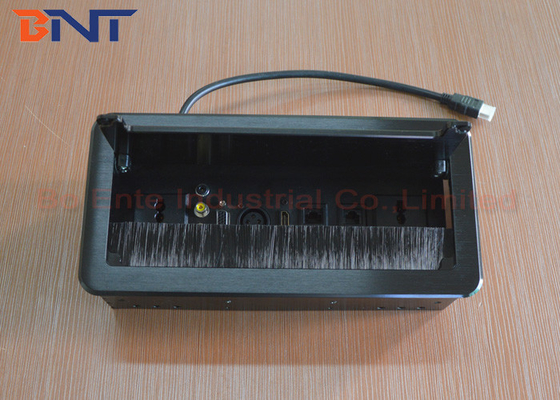

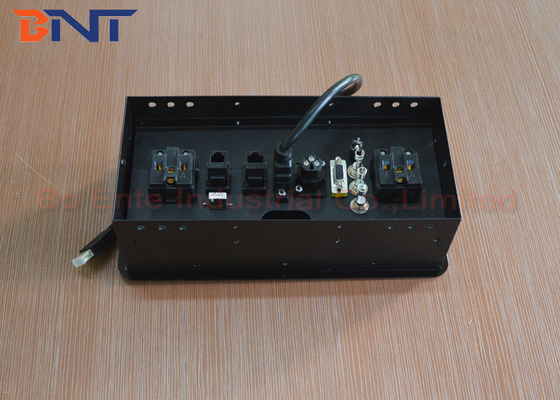

Black Tabletop Manual Flip Up Outlet Box / Interconnection Multiple Socket with Brushed
BNT Tabletop manual flip up brushed socket is a new multi-functional design of table socket, it contain with multi-function office AV solutions connectors, It’s based on the modular design with some AV module and power module, such as HDMI, VGA, DVI, USB date, USB charger, Network, CAT 5, CAT6, MIC, RCA, Audio 3.5, Audio R&L, etc. t has a brushed cover panel which can save more space and keep the tabletop tiny. All the connection ports are normally hidden under the flip up cover on the table, we can flip up the cover and connected all ports when we using. After the connected, we can release the cover and let it close to the table and keep the user avoid electric shock. This tabletop manual flip up socket is multiple used in the high-class office table, conference room table, school lecture hall, office / school training room, hotel and the AV equipment room.
1, High quality 3mm panel thickness aluminum panel surface, not easy to bend.
2, Aluminum alloy wired drawing top panel, elegant fashion, simple appearance not easy to grind flower.
3, Anode oxidation process, anti-scratch, anti-dusty and anti-rust, upscale elegance.
4, Surface is high-grade scratch-resistant, bottom panel on the configuration corresponding to the modules, no soldering required.
5, Save more space,after using you can close it with the cover panel to keep it anti-dusty, and the table tiny.
6, Easy installation, just cut out a square hole and install the socket on the table directly.
7, Safety design, anti-electric shock when the connection panel hidden under table after used.
|Type||Tabletop brushed flip socket box|
|Style||manual flip up socket|
|Application||Office meeting room tabletop AV solutions|
|Process||Anode oxidation (anti-rust) process + Aluminum alloy brushed finish|
|Panel size||266mm * 130mm|
|Box size||253mm * 115mm * 78mm|
|Rated voltage||110V ~ 240V|
|Rated current||10 ~ 13 Amp|
|Frequency||50 / 60 Hz|
-20°C/ + 50°C
|Connection power||2* Universal standard power outlets|
|Configuration||2* RJ45 + 1* VGA + 1* USB + 1* 3.5 Audio + 1* HDMI + 1* RCA + 1* Mic|
|OEM / ODM||Yes|
1, Cable management type or modular type can be select accordingly.
2, The bottom connection ports can be supply with welding or female accordingly.
3, Panel connection outlets can be changeable with different country standard power.
4, Changeable combinations, modules can be customized as request accordingly.
5, Interconnection box length can be available with difference quantities modules.
6, Sample order and customized made is available.
Customized selection modular:
VGA / HDMI / USB data / USB charger / Network RJ45 / Telephone RJ11 / 3.5 Audio
Dual 3.5 Audio / Power switch / 6.35 speaker / Video / Dual Audio / Microphone Canon
Universal plug / Eurpe standard plug (EU) / British standard plug (UK) / American standard plug (US)
Australia standard plug (AU) / South Africa standard plug (SA) / France plug / German plug
Italy plug / Chile plug or other plug
Not to destroy any attachments and connection cables.
Panels should be installed by professionals.
The sharp edges of the Panel carefully in order to avoid any possible damage to the cutting.
Kept dry, ventilated and avoid damp, dust and heat.
Check it carefully before installing the power supply voltage and frequency.
Before cleaning the power socket, be sure to turn off the power.
Contact Person: Donny Zhang
