Product Details:
|
Type: | Electric Table Flip Up Socket | Material: | Aluminum Alloy |
---|---|---|---|
Model Number: | EK6203 | Color: | Silver/black |
Box Size: | 357*110*103mm | Cable Length: | 1.5m |
Conference: | 2*universal Power+2*usb Charger | Voltage: | 110-240V |
Highlight: | meeting table power socket,hidden power socket |

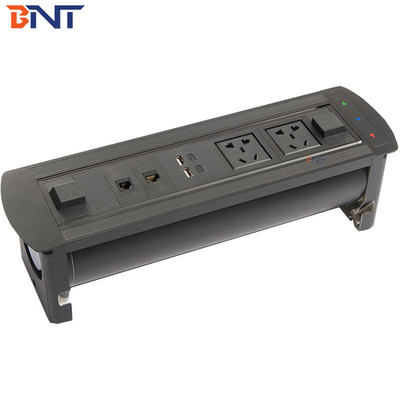

BNT available customized electric table flip up socket with 180 degree overturn angle EK6203
Introduction:
EK series Electric Desktop socket is an innovative solution to provide electric, data and other AV interfaces on desktop office furniture. EK series Electric Desktop Socket is powered by an electric drive motor that rotate the sockets to the hidden position when unused. A photoelectric eye inside electric desktop socket will prevent rotation if there was an obstruction on the top of electric desktop socket during working.
Feature:
1, Electric Desktop socket offer outlets for accessibility to electric, internet, telephone, VGA, HDMI,3.5 Audio, USB, MIC and could be customized for other data and AV interfaces.
2, Electric Desktop socket rotate all sockets to the hidden position by press the touch button, to provide a clean and elegant surface of worktop. Also Electric Desktop socket prevent accidental spillage of fluids into the product.
3, A photoelectric self-lock device inside the Electric Desktops Socket prevent sockets from rotating if one of socket units is plugged. Also prevent cable damage and hand jammed during operation.
4, Electric Desktop Socket contain an electric drive motor, ensure reliable rotation and the ability to orient itself to the proper position.
Selling Points:
1, high quality aluminum alloy finishing with motors
2, white/black/gold color is available for color selection
3, Power plug and voltage could be changed accordingly.
4, OEM with logo on product and packing is available
5, Customized made is available
Specification:
Model No. | EK6203 |
Type | Electric Flip Rotating Socket |
Material | Aluminum alloy |
Color | Silver/Black |
Configuration | 2*universal power+2*network+2*usb charger |
Overturn angle | 180 degree |
box size | 357*110*103mm |
Panel thickness | 3 mm |
Cable length | 1.5 m (Length is available from 0.3m ~ 4.0m) |
Rated voltage | 110V ~ 240V AC |
Rated current | 10 ~ 13 Amp |
Warranty | 12 month |
