Product Details:
|
| Material: | Aluminum Alloy Brushed | Function: | LCD Monitor Lift |
|---|---|---|---|
| Panel Size: | 63*7.3cm | Case Size: | 46.3*7*55cm |
| Aluminum Thickness: | 0.4cm | Overturn Angle: | 15 Degree |
| Monitor: | 15.6" FHD LED Screen | Resolution: | 1920*1080 |
| Microphone: | Discussion Microphone | Color: | Aluminum Silver |
| High Light: | electric monitor lift,motorized lift mechanism |
||
18.5 Inch Motorized Screen Pop Up Computer Super Slim LCD Monitor Lift Mechanism 7.3cm
Introduction:
Computer LCD monitor lift is a ultra-thin design of electrical lifting monitor mechanism with retractable monitor and microphone. It’s a complete monitor lifting equipment for office audio video conference system.
18.5” screen could arising up from the equipment case to the tabletop if user would to present information by wireless controller. And 18.5” screen would be tilting 15 degree for prefect presentation automatically once arrived the desktop surface. 18.5” screen would moving back from 15 degree position and become straight, then coming down into the mechanism case after meeting. What’s more, the 18.5” screen could be power on and present data information automatically if reach the desktop, and it could closed the data presentation and power off if arrived the bottom case. The microphone come with LCD lift is the conference system discussion. User could use the microphone for voice and the chairman microphone could make all voice stop. What is more, dicusssion microphone is available for digital camera tracking if working with microphone controller. With such smart function, the lift provide good protection for the screen and save the electricity.
Feature:
1, Motorized lifting system integrated with LED monitor and discussion microphone.
2, Circuit board make motor working to bring gear lifting monitor up with rack. Supply the most steady and safe during monitor lifting up and down.
3, It is smoothly and quietly during monitor lifting. Low noise which less than 30db.
4, Monitor would be power on automatically if reach desktop and power off if arrived the bottom. And power off automatically if reach the bottom.
5, Made of 5mm thick aluminum alloy drawing panel and brush aluminum alloy monitor shell, provided smart, elegant and high grade appearance.
6, Complicated with paperless office software, Crestron central controller and wireless automatically mobile phone controller.
7, Superior gear appliance with double rack to ensure steady and reliable lifting for screen without damaged.
8, Equipped with VGA or HDMI, USB, XRL,RS232 data interfaces for convenient data access.
Customized Option:
| 1 | FHD Screen, HD Screen, Touch Screen |
| 2 | Customized panel with discussion microphone |
| 3 | Customized panel with USB connector |
| 4 | Customized panel with Computer Switch |
| 5 | HDMI cable with input for underneath installation |
| 6 | Panel & monitor shell could be anodized in different color |
Application:
LCD motorized lift purpose on conference room, meeting room, hotels, school, training room, financial analyzing room and other advanced office. It could complicated with all brands LED monitor, conference discussion microphone, digital camera, Crestron central control, wireless authentically control system to realized smart paperless office audio video system.
Detail Parameter:
| Item Name | LCD monitor lift |
| Model Number | BLL-18.5M |
| Material | Aluminum alloy drawing finishes |
| Panel Dimension | 70*7.3cm |
| Case Dimension | 53*7*60cm |
| Panel Thcikness | 0.4cm |
| Monitor | 18.5" FHD screen |
| Resolution | 1920*1080 |
| Viewing Area | 408.2*229.6mm |
| Microphone | Conference system discussion microphone |
| Color | aluminum silver |
| Control way | Switch/ wireless remote / RS232 port |
| Data interface | USB input, HDMI input, XRL and RS232 port |
| Warranty | 1 year |

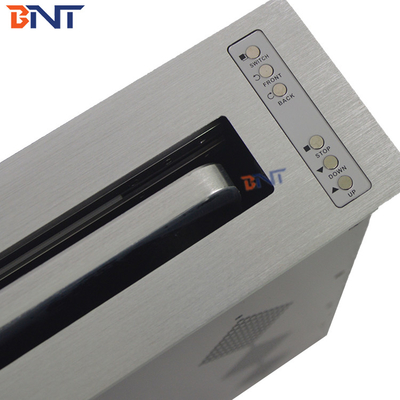

Product Pictures:
