Product Details:
|
| Model: | BLL-9.7 | Style: | Motorized Tv Lift Mechanism |
|---|---|---|---|
| Material: | Aluminum Alloy Draw Bench Panel | Panel Size: | 340*70*3mm |
| Box Size: | 500*325*65mm | Panel Thickness: | 3mm |
| Suitable For: | Tablet PC | Tilting Angle: | 0-30 Degree |
| Color: | Silver | ||
| Highlight: | Conference Room Motorized TV Lift,3mm Hidden Monitor Lift |
||

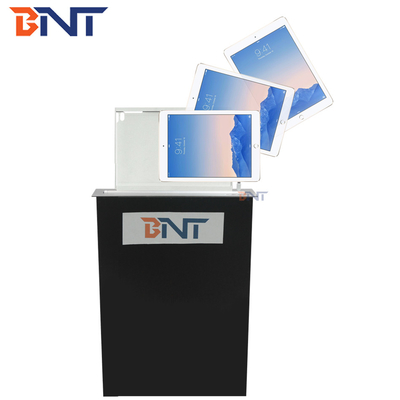

suitable for tablet PC used in conference room motorized tv lift mechanism BLL-9.7
Introduction:
motorized tv lift mechanism is advance hiding equipment designed for audio video system in office furniture. The LCD screen of Motorized monitor lift would be rising down into the desk and hidden under the office table when unused; Screen inside the Computer Screen Lift would be rising up from table automatically by touch switch or remote control and present the workable screen on the desktop if used.
Feature:
1, The panel of motorized tv lift mechanism is aluminum alloy, with aluminum wire drawing process on surface.
2, The motorized tv lift mechanism adopts synchronous orbit lifting principle.
3, motorized tv lift mechanism device works smoothly and quietly. Low noise which less than 30db.
4, motorized tv lift mechanism provides protecting function of LCD monitors by cutting the electricity off automatically.
5, motorized tv lift mechanism would be adjustable elevation angle of LCD monitor for protecting your eyes from the direct light.
5, Tabletop Monitor Lift is controlled by two big AC motors. One controls opening and closing the panel of LCD monitor Lift; one controls lifting the monitor up and down and adjust the angles of the monitor.
6, Control system: Touch Switch on LCD electric Lift panel, RF remote control, RS232 AND rs 485 central control.
selling points:
1, high quality aluminum alloy finishing with motors
2, apply for ipad tablet PC,with a data cable of iphone
3, white/black/gold color is available for color selection
4, Power plug and voltage could be changed accordingly.
5, OEM with logo on product and packing is available
6, available Customized as required
Application:
motorized tv lift mechanism is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.
Parameter:
| Item Series | motorized tv lift mechanism |
| Item Model | motorized tv lift mechanism |
| Style | motorized tv lift mechanism |
| Products consitute | LCD monitor lift+Remote control |
| Material | Aluminum alloy draw bench panel |
| Panel size | 340*70*3mm |
| Box size | 500*325*65mm |
| Panel thickness | 3mm |
| Lift mount size | 255*180mm |
| Require Size for All In One PC | Within 255*180mm |
| Voltage | 110V,220V,240V |
| Power | 20~25W |
| Tilting angle | 0~30° |
| Single trip time | 30s |
| Color | Silver /Black matt/ Gold |
| Remote distance | 10m |
| Control Way | Touch kep-press/Remote control/ RS485 central control |
| Running Way | Tubu motor with rack driving |
| Protection way | Cable Manager/Protection finger from nipping |
| Power Protection way | Monitor turn off automatically |
Professional Service:
1, Any of inquiries will be response within 48 hours
2, Sizable accessories of products for replacement
3, Sample of LCD monitor lift is available.
Warranty:
Study the user’s manual carefully before installation.
All of our products provide 12 months warranty! The warranty period starts from the goods receipt by initial consignee.
