|Product Number:||EK9211EU||Material:||Aluminum Alloy|
|Rotating Angle:||180 Degree||Color:||Silver / Silver Flash / Black|
|Panel Thickness:||3 Mm||Box Size:||427mm * 110mm * 103 Mm|
|Configuration:||2* Universal Power + 1* HDMI+2* USB+1*RJ45||Rated Voltage:||110V ~ 240V AC|
|Package:||8 Units/carton||Warranty:||12 Month|
conference table power socket,
meeting table power socket

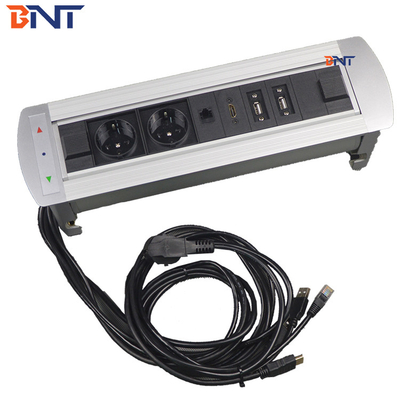

Boente Electric Silver Desk Flip Up Power Data Socket And 3mm Panel Thickness EK9211EU
EK series power data tabletop socket is an innovative equipment to provide electrical and AV access. It is used together with the furniture. It integrates the electronics technology and automation into the modern furniture and humanize with the automation and safety. Gently press the green button, the ports connection panel will be flip up automatically into appearance. After use, press the red button, the ports connection panel down and locked. It’s widely used for the high-tier office table, conference room table AV solution, hotel room and training room.
1. Aluminum alloy wired drawing top panel, elegant fashion, simple appearance not easy to grind flower
2. With quiet synchronous motor, panel socket can be rotating automatically via switch control.
3. Design of electronic type anti-operation after use do not pull cord motor
4. High quality 3mm panel thickness aluminum panel surface, not easy to bend
5. Anode oxidation process, anti-scratch, anti-dusty and anti-rust, upscale elegance
6. Round corner design, protect user be scratched by the surface corner
7. Easy installation, just cut out a square hole and install the socket on the table directly.
8. Safety design, anti-electric shock when the connection panel hidden under table after used.
|Style||Desktop pop up socket box|
|Catalogy||Electric rotating interconnection box|
|Application||High-tier office, conference room|
|Material||Aluminum alloy surface panel + plastic hanger|
|Rotating angle||180 degree|
|Color||Silver / Silver Flash / Black|
|Panel process||Aluminum alloy wired drawing + anode oxidation process|
|Panel thickness||3 mm|
|Box size||427mm * 110mm * 103 mm|
|Configuration||2* Universal power + 1* HDMI+2* USB+1*RJ45|
|Rated voltage||110V ~ 240V AC|
|Rated current||10 ~ 13 Amp|
|Frequency||50 / 60 Hz|
|Operation Temperature||-20°C / + 50°C|
How to install and operation:
1. Cut out a properly square hole on the table;
2. Put the socket into the square hole, the connction cable hidden under the table;
3. The indicator light is illuminated when product power up;
4. Press the green touch button if use, the product will rotate 180 degree to the desktop.
5. Press the red touch button if unused, the product will rotate 180 degrees to the hidden position.
1. Manual rotation type is available without motors
2. Cable length are available with different length to 1.0m ~ 5m
3. Cable connection plugs can be changed with different standard
4. Changeable combinations, modules can be customized as you need accordingly
5. Sample order and customized made is available
VGA / HDMI / USB data / USB charger / Network RJ45 / Telephone RJ11 / 3.5 Audio
Dual 3.5 Audio / Power switch / 6.35 speaker / Video / Dual Audio / Microphone Canon
Universal plug / Eurpe standard plug (EU) / British standard plug (UK) / American standard plug (US)
Australia standard plug (AU) / South Africa standard plug (SA) / France plug / German plug
