Product Details:
|
| Product Name: | Drop Down TV Ceiling Lift | Material: | Cold Rolled Steel |
|---|---|---|---|
| Color: | Black/White | Match Tv Size: | 55-65 Inch Tv |
| VESA Hole: | 600*400mm | Loading Capacity: | 50KG |
| Flip Angle: | 0~105° | Working: | Drop Down |
| High Light: | motorized television lift,motorized tv mount lift |
||

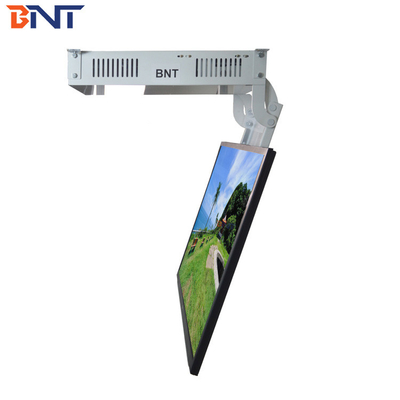

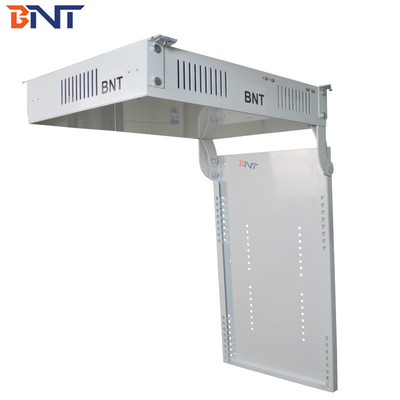

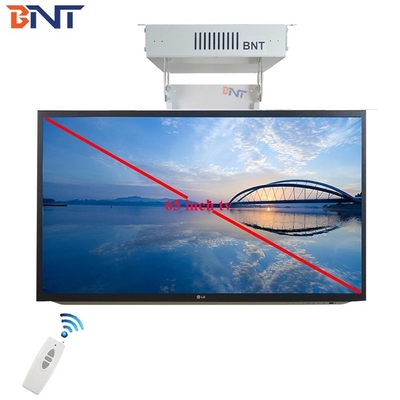

Hidden into false ceiling mounted motorized electric drop down tv lift for 65inch TV
Introduction:
TCL-65 is the flilp down ceiling tv lift for ceiling mounting.It is deisgned as a hidden equipment for mounting plasma TV form 55-65 inch. With the tubular motor mechanism, the mounted TV
can automatically flip up and down to 105 degree max.Universal mount panel with 600*400mm vesa hole, can match form different brands of 65 inch plasma TV, 50KG big loading capacity by using 5MM thickness good quality flipping bracket.
It is widely use on office, hotel, and hospital and smart home application.
Selling point:
1. Motorized ceiling TV lift with high quality tubular motor
2. Tv ceilinglift wireless remote control and surface switch control the TV flip up and down, optional for Up, Stop, and Down, easy to operate
3. Max flip up angle 105 degree
4. 50kgs max support weight, could load all brands plasma TV from 65 inch smoothly.
5. Contructed with cold rolled steel material,insure the TV stable and safe during lifting up or down.
6. Silent working, the noise is within 50 decibels.
7. Good quality 5MM thinkness flipping bracket

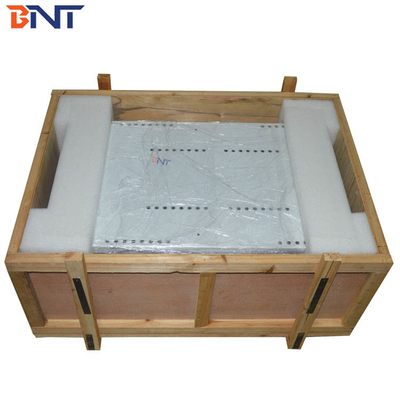

8. Good quality wood case packing
Detailed Parameter:
| Product Name | drop down ceiling tv lift |
| Model No. | TCL-65 |
| Color | White |
| Material | Cold Rolled Steel |
| Suitable Screen Size | 55-65 inch tv |
| Product Size | 245(H)*520(W)*700(D)mm |
| Case Size | 105(H)*450(W)*620(D)mm |
| Panel size | 30(H)*430(W)*700(D)mm |
| Bracket thickness | 5mm |
| VESA hole | 600*400mm |
| Loading capacity | 50kgs |
| Control Way | Remote control /switch |
| Flip Angle | 0~105° |
