IR Language Distribution System
This system is ideal for use in business and government conferences,international conventions and other multilingual applications, offering simultaneous interpretation and wireless audio distribution for up to 6 different languages plus the floor language using state-of-the-art infrared transmission technology. It complies with the IEC industry standards, operating in the higher frequency band to avoid lighting interference.

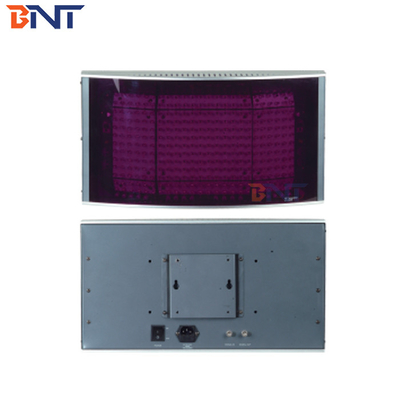

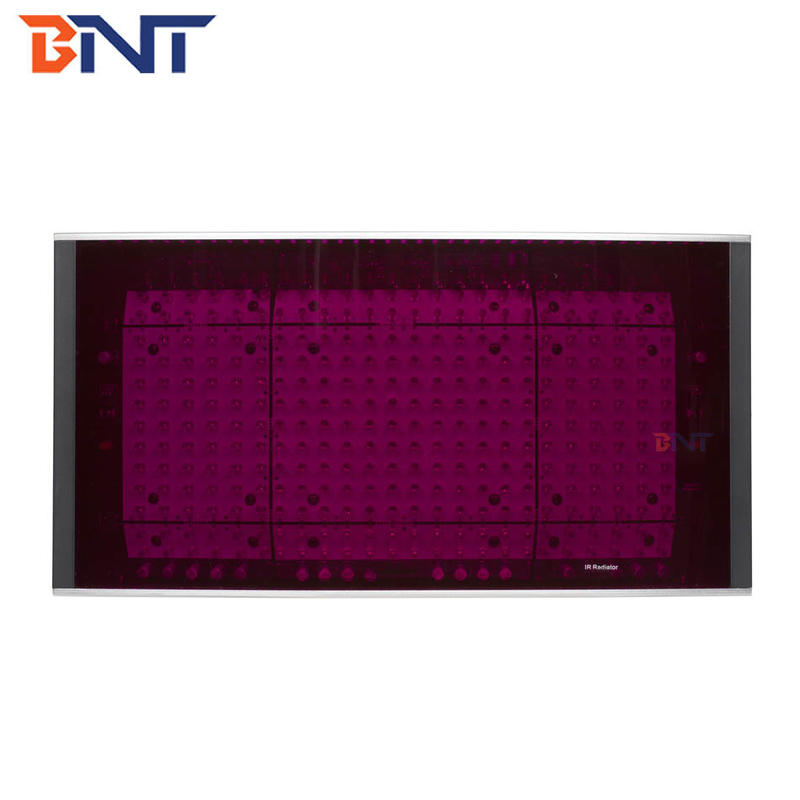

2. IR Radiator
a. Frequency band: 1.7 - 4.0 MHz
b. Max. IR output power: 25W
c. Max. coverage range: 30m
d. Output level control: Low/High (50%/100%)
e. Angle of half intensity: ±22°
f. RF output impedance: 50 ohms
g. RF input voltage: 100-2000mV
h. Power consumption: 55W / Stand-by 8W
i. Power Supply: 220VAC±5%
|Launch pad for simultaneous interpretation
||● Super launch capability, distance up to 30 meters
● Multi channel uses the same transmitting unit.
● Configuration can be selected according to the area of the venue.
● It can be fixed installation (equipped with universal support)Or install with triangle bracket.
● Half firing angle:±22
