Product Details:
|
| Product Name: | Computer LCD Monitor Lift | Material: | Aluminum Alloy |
|---|---|---|---|
| Color: | Silver/Black | Fits Monitor: | 22 Inch Monitor |
| Panel Size: | 608*158*4mm | Box Size: | 585*143*660mm |
| Cutout Size: | 588*146mm | Control Way: | Touch Button/remote/central Control |
| Interface: | VGA / HDMI +RS232 I/O USB + Power Plugs | Automatic Pitch Angle: | 0~20 Degree |
| High Light: | Computer LCD Monitor Lift,Aluminum Alloy LCD Monitor Lift,22 Inch LCD Monitor Lift |
||

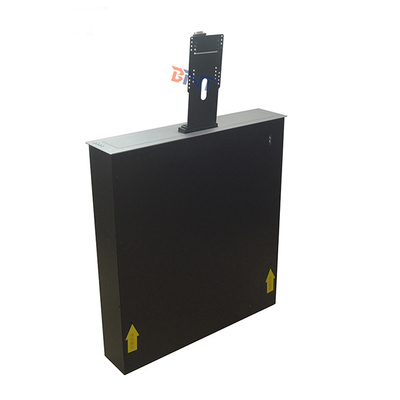

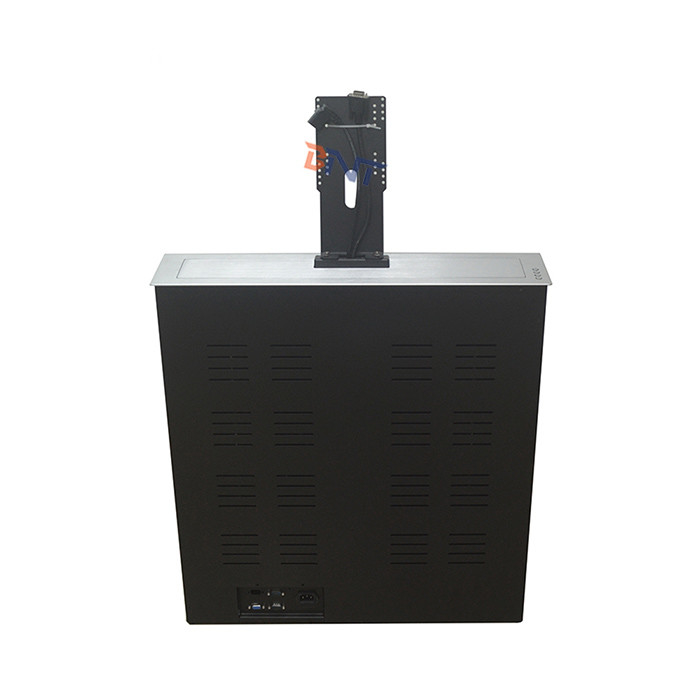

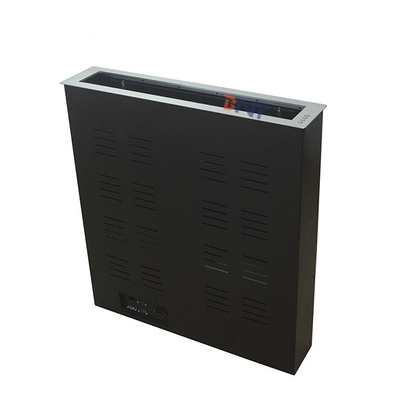

Desktop motorized computer LCD monitor lift mechanism for office automation system
Fits 22inch monitors
Function:The office system for multimedia conference high-end conference venue. Automatically rises out of the desktop when needed, and hidden in the table when not in use.
Performance: The lcd monitor adopts two motors, double guide rails and single synchronous belt transmission principle. It has the advantages of waterproof, dust-proof, anti-card, anti-pollution , the originate anti-pinch and With power-off protection, memory LCD angle function.
Appearance: The aluminum alloy panel is made of advanced technology such as drawing, dyeing and oxidation. The exterior is beautiful and elegant, low failure rate and easy to operate and maintain .
Control method: manual control, central control, remote control
color:silver, black, etc. Can be customized as your requirements
The design concept : Aesthetics Practicality Stability Easy to use
Product structure and characteristics:
1 Adopt the most advanced angle adjustment method with memory function
2 Use aluminum alloy wire drawing oxidation panel in top
3 Control the lifter by RS232/485 serial communication mode
5 Adopting double-rail synchronous belt transmission principle
6 Adopt high-power ultra-quiet synchronous motor
Detail Parameter:
| Product name | computer monitor lift |
| Model | BBL-22 |
| Material | Aluminum alloy |
| Panel Size | 608*158*4mm |
| Box Size | 585*143*660mm |
| Panel Thickness | 4mm |
| Available Monitor Space | (L)540*(D)86mm |
| Monitor Pitch Angle | 0~15° |
| Color | Black/ Silver |
| Interface | VGA/HDMI +RS232 I/O |
| Control way | Remote control/ Switch/ Central contorl |
