Product Details:
|
| Product Name: | Electric Power Socket Outlet | Material: | Aluminum Alloy Shell |
|---|---|---|---|
| Configuration: | 4*universal Power+1*network | Style: | Electric Working Socket Outlet |
| Cable: | 1*power Cable +1*network Cable 1.5M | Certificate: | CE, ROHS, FCC |
| High Light: | FCC Electric Power Socket,Aluminum Alloy Electric Power Socket |
||

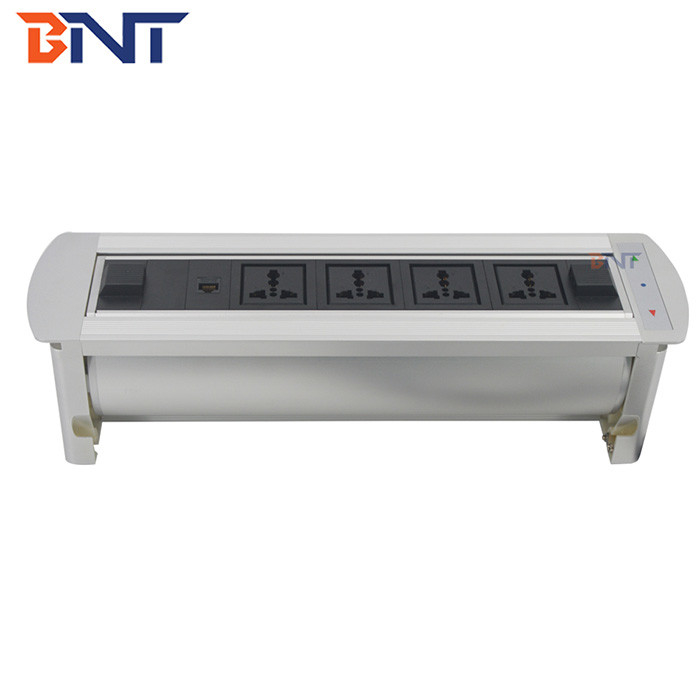

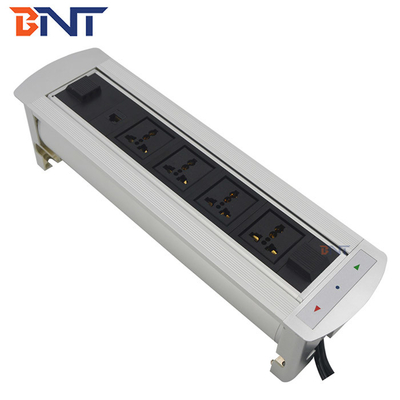

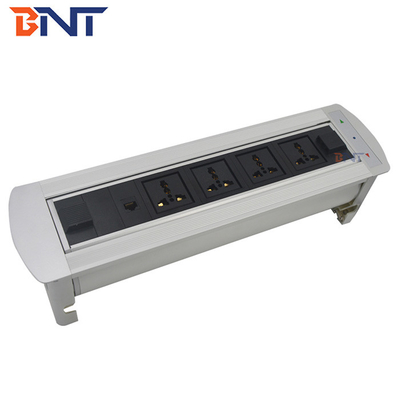

Conference table recessed mounting universal electric power socket outlet
Introduction
EK series table socket outlet is designed as a electric power socket outlet with 4*universal power+1*network, the power plug could be change to UK/AU/US/EU plug,Press the green button, the socket panel will automatically 180 degree roate from the table, then the socket is exposed to the tabletop for use. When it is unuse, it is closed by 180 degree roatation to flush with the desktop.
It’s widely used for the high-tier office table, conference room table AV solution, hotel room and training room.
Specification:
| Model No. | EK5410 |
| Product name | table socket outlet |
| Catalogy | Electric overturn |
| Application | High-tier office, conference room |
| Material | Aluminum alloy |
| Rotating angle | 180 degree |
| Color | Silver / Black |
| Product Size | 379*110*110mm |
| Cutout size | 349*104mm |
| Configuration | 4*Universal Power+ 1*RJ45 Network |
How to install and operation:
1. Cut out a properly square hole on the table;
2. Put the socket into the square hole, the connction cable hidden under the table;
3. The indicator light is illuminated when product power up;
4. Press the green touch button if use, the product will rotate 180 degree to the desktop.
5. Press the red touch button if unused, the product will rotate 180 degrees to the hidden position.
