Product Details:
|
Material: | Aluminum Alloy Finishing | Product Name: | LCD Motorized Lift For Monitor |
---|---|---|---|
Match Monitor Size: | 17-19 Inch Screen | Panel Size: | 540*190mm |
Panel Thickness: | 5mm | Case Size: | 520*175*625mm |
Lifting Size: | 460*110mm | Monitor Tilting Angle: | 45~60 Degree |
Color: | Aluminum Silver/ Black / Gold | Voltage: | 220V |
Control System: | Switch/ Remote / RS232 | Monitor Protection: | Monitor Power Off Once Reach Bottom |
High Light: | lcd monitor lift,computer screen lift |
17~19 Inch Computer LCD Motorized Lifts with 45 degree Screen Tilting For Conference System
Introduction:
Computer LCD motorized lift is a new design of electrical lifting monitor mechanism with screen tilting function. It’s a hidden equipment for audio video conference system.
LCD/LED monitor could arising up to the tabletop if user would to present information by wireless controller. And the LCD/LED monitor would be tilting 45~60 degree for prefect presentation automatically once arrived the desktop socket.
LCD/LED monitor would moving back from 60 degree position and coming down into the mechanism case if user finished meeting.
LCD motorized lift featured by stable performance, automatic operation & space saving. With its smart function, it provides an efficient manner and enjoyable experience in conference communication and information presentation for meeting.
Application:

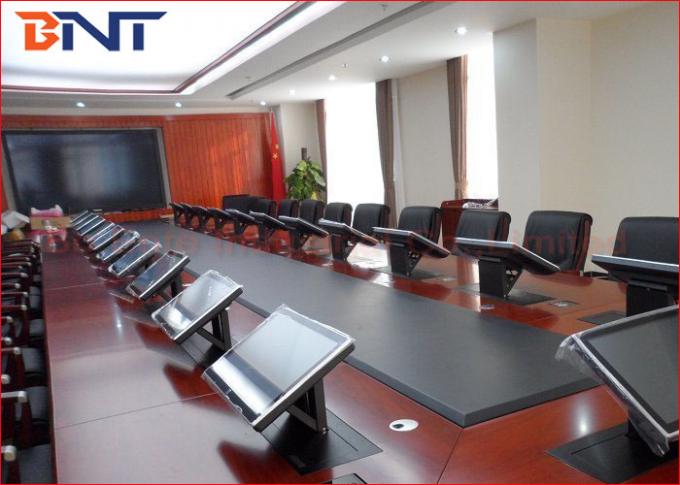

LCD Monitor Lift is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.
Feature:
1, Made of aluminum alloy panel and steel case, adopt imported circuit board, synchronous motor,and gear & rack.
2, Aluminum oxidation with drawing polishing surface process to make panel smooth and bright, ensure elegant and high grade appearance
3, Adopt double powerful motor, one motor to control monitor lifting up and down from mechanism, another motor control monitor tilting 45~60 degree angle and back.
4, Smart circuit board offer monitor protection, monitor could be power on once arrived the desktop, monitor could be power off if reach the bottom automatically.
5, Adopting superior gear appliance with double rack to ensure stable and reliable lifting for screen
6, Provide screen angel adjustable button, 45~60 degree screen to offer prefect reading area for information presentation.
7, Working smoothly and quietly during operation. Low noise which less than 30db.
8, Complicated with AMX/Crestron or other central controller via RS232 port.
Selling Points:
1, Screen could be electrical overturn 45~60 degree angle for more prefect presentation.
2, Aluminum black or silver color are available for normal selection, aluminum gold color could be customized if required.
3, 10 year LCD motorized lift manufacturing experience, quality approved with CE ROSH SASO CCC
4, Provide professional user’s manual and cable connection layout for installation.
5, Packed with strong carton with foam cushion to protect product during transportation. Wood box or wood support is available if required.
Specification:
Item Series | LCD Monitor Lift |
Item Model | BLL45-19 |
Style | LCD motorized lift for monitor |
Products consitute | LCD monitor lift + Remote control |
Material | Aluminum alloy draw bench panel |
Panel size | 540*190mm |
Box size | 520*175*625mm |
Panel thickness | 5mm |
Lift mount size | 460*110mm |
Packing size | 65*47*26cm |
Voltage | 110V,220V,240V |
Power | 20~25W |
Tilting angle | 0~15° |
Single trip time | 20s |
Color | silver /black matte/ gold |
Remote distance | 10m |
Control Way | touch switch, remote control, RS232 port |

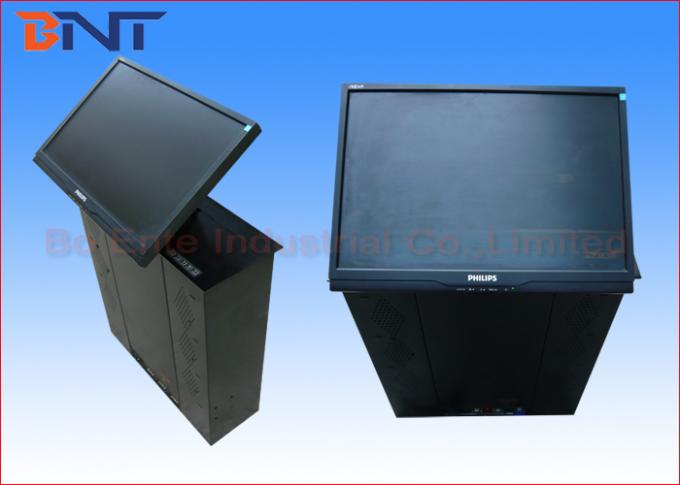

Product Pictures:
