Product Details:
|
| Style: | Desktop Hidden Pop Up Outlets | Product Items: | BP412 |
|---|---|---|---|
| Application: | Office Tabletop AV Solutions | Material: | Aluminum Alloy Brushed |
| Panel Size: | 175*130mm | Panel Thickness: | 5mm |
| Panel Corner: | Round | Cable Length: | 30 Cm |
| Pop Up Size: | 144*90mm | Modular: | Lan / VGA / USB / Audio / RCA |
| Power: | Universal Power Socket | Mechanism: | Pneumatic Pop Up Spring |
| Highlight: | table top electrical outlets,desk pop up sockets |
||

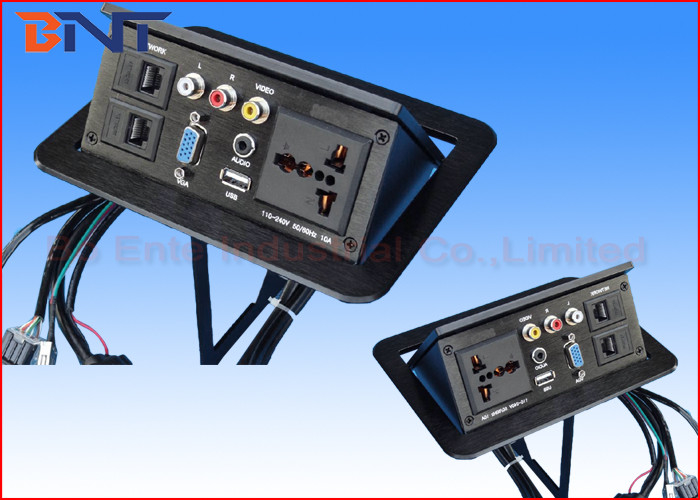

ROSH Approved Desktop Hidden Pop Up Power Socket Plate with Connection Cables
Introduction:
As the requirement of conference room become more and more higher. Luxurious and convenient conference equipment is necessary. Tabletop mount hidden pop up power socket box is the one of conference equipment for AV solutions.
Table pop up socket, press the top of the desktop socket, the mechanical Locking device inside the desktop socket will be released and the connection panel will be opened smoothly by the Pneumatic Support Structure, and use the seams on the panel which user could connect Video, Audio, Network, Telephone, Power and so on.After using the manual socket box, Just press the panel cover, the Mechanical Locking Device inside the desktop socket will lock the box. The locked connection box is flush with the tabletop and all the connections are hidden dexterously. The neat & elegant topside of the box together with the tabletop form an integrated mass.User press the surface panel to release the inside fixed locking, then socket would be pop up via this pneumatic support slowly and smoothly. All cables are connected with bottom connection panel directly, simple to install, very convenient for office conference.
Feature:
1. 5mm thickness aluminum alloy panel, not easy to bend and scratch
2. Surface panel with anti-oxidation film, not easy to rust
3. The cube box painting with anti-rust black paint, anti-fouling and anti-scratch
4. Have fixed screws hole on the side of box, can fixed on the table, not easy to move
5. Fixed bracket can adjustable based on thickness of table
6. With high quality pneumatic support structures, can use over 10000 times
7. The pneumatic support mechanism is imported from Taiwan, pop up slowly and smoothly.
8. Save more space, and make the office environment durable and beautiful
9. The surface panel is designed for round corner, prevent desktop scratch and cause injury to people
Selling Piont:
1. Sample order and customrized made is available
2. Silver/black is available for color selection
3. Power plug and voltage could be changed accordingly.
4. OEM with logo on product and packing is available
Application:
Multimedia Aluminum multiple table top socket is mainly used in advanced office, hotel, residence, training room, lecture room and so on.
Packing dimension:
| Unit box size | 21*17*16mm / pcs |
| Out carton size | 23*49*36mm / ctn |
| Package | 6 pcs / ctn |
| Unit weight | 1.7 kg / pcs |
| Carton weight | 11 kg / ctn |
Specification:
| Model: | BP412 |
| Product style | Tabletop multiple pop up power socket |
| Application | High-tier office conference tabletop AV solutions |
| Material | Aluminum alloy brushed |
| Surface panel size | 175*130mm |
| Panel thickness | 5mm |
| Connection length | 30cm |
| Configuration | 2* RJ45 1* VGA 1* USB 1* Audio 3.5 1* RCA 1* Universal plug |
| Panel corner | Round |
| Pop up mechanism | Pneumatic pop up spring |
| OEM/ODM | Yes |
| Color | Black (silver is selection) |
| Warranty | 12 month |
|
Other selection
|
VGA / HDMI / USB date / USB charger / Audio / Video / RCA Network / Telephone / Microphone / Cat6 / XLR Universal plug / EU standard plug / UK standard plug AU standard plug / US standard plug / SA standard plug |
