Product Details:
|
| Model: | EK8233 | Function: | Electric Power Rotation Socket |
|---|---|---|---|
| Application: | Conference Room Table Solutions | Ground: | Standard Grounding |
| Usage: | Residentaial / General-purpose | Material: | Aluminum Alloy + Plastic |
| Rotation Angle: | 180° | Rated Current: | 10 ~ 16 Amp |
| Rated Voltage: | 110V ~ 240V AC | Warranty: | 12 Month |
| High Light: | meeting table power socket,hidden power socket |
||

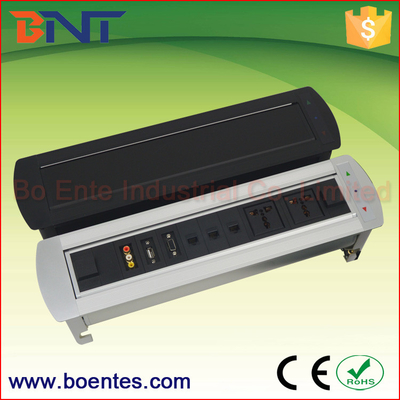

Coference Tabletop Hidden Rotating Power Socket with USB / RJ45 / VGA Connection Cables
Introduction:

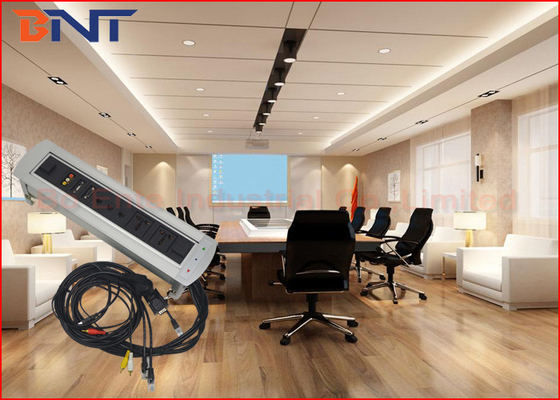

EK tabletop interconnect box provides hidden accessories for power and multimedia connectors. It contain with difference AV modules include the electric power, visual projection and audio modules. It can assemble 5 ~7 unit modules meets for power and data outlet demand. Gently press the green button, the ports connection panel will be flip up automatically into appearance. After use, press the red button, the ports connection panel down and locked. This tabletop hidden rotatable power socket is widely used for the high-class chairman room table, high-tier office table, conference room table AV solution, hotel room and work training room.
Feature:
1. The surface panel is made of high quality aluminum alloy material, keep the socket surface with a good metal color appearence.
2. The surface making with Anode oxidation treatment, anti-scratch, anti-dusty and anti-rust, upscale elegance.
3. High quality 3mm panel thickness aluminum panel surface, not easy to bend
4. Aluminum alloy wired drawing top panel, elegant fashion, simple appearance not easy to grind flower
5. Anode oxidation process, anti-scratch, anti-dusty and anti-rust, upscale elegance
6. Anti-pinch function, when the tabletop socket is turning, if there is something come and stay on the connector, the socket will turn back to the last position.
7. Cable connection plugs can be changed with different standard
8. Easy installation, just cut out a square hole and install the socket on the table directly.
9. Sample order and customized made is available
10. Safety design, anti-electric shock when the connection panel hidden under table after used.

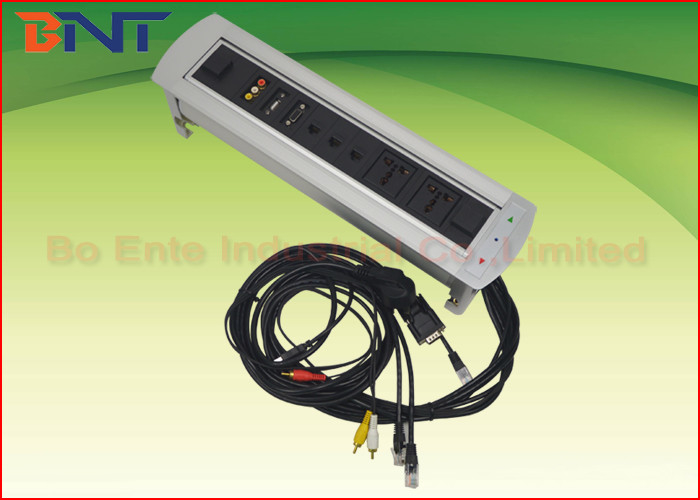

11. With 1.5 meter extension connection cables
12. Convenient connection, just connection the connector cables directly under the table.
13. Cable length are available with different length to 1.0m ~ 5m
14. Interconnection box length can be available with difference quantities modules
15. 3mm thickness aluminum alloy surface panel, mount and hidden on the tabletop smoothly, cleanly and not easy to bend.
16. Changeable combinations, modules can be customized as you need accordingly
17. Touch press button, easy to use, two switches on the panel, open and closure.
18. Save more space,after using you can close it with the button on panel to keep it anti-dusty, and the table tiny.
Specification:
| Model | EK8233 |
| Type | Table sockets |
| Function | Table hidden rotation socket |
| Working principle | Electric rotating motor |
| Usage | Commerical / General-purpose |
| Application | High-tier office, conference room tabletop AV solutions |
| Input power | 2* Universal power |
| Cable plugs | 1* 3-pin universal power plugs |
| Module | 3* Network RJ45 + 1* VGA + 1* USB + 1* RCA |
| Material | Aluminum alloy + plastic |
| Cable length | 1.2 meter |
| Panel color | Aluminum sliver |
| Panel size | 428 * 110 mm |
| Box size | 400 * 103 * 110 mm |
| Panel thickness | 3 mm |
| Panel corner | Round |
| Rated voltage | 110 V ~ 240 V AC |
| Rated current | 10 ~ 16 Amp |
| Rated power | 3680 W |
| Frequency | 50 Hz |
| Opertaion Temp. | -20°C / + 50°C |
|
Module select
|
VGA / HDMI / USB date / USB charger / Audio / Video / RCA Network / Telephone / Microphone / Cat6 / XLR Universal plug / EU standard plug / UK standard plug AU standard plug / US standard plug / SA standard plug |
Seiling piont:
1. USB charger system can be support with different input voltage and output charging current
2. Cable length are available with different length to 1.0m ~ 5m
3. Cable connection plugs can be changed with different standard
4. Changeable combinations, modules can be customized as you need accordingly
5. OEM/ODM and logo request is available
6. With CE / ROSH / UL / SASO approved
7. Any of inquiries will be response within 48 hours
8. Sizable accessories of products for replacement
9. Manual rotation type is available without motors
Pictures:
