Product Details:
|
| Product: | Multi-function Conference Table Socket Box | Type: | Tabletop Hidden Pop Up Socket |
|---|---|---|---|
| Panel Size: | 266 * 118 * 2 Mm | Box Size: | 221 * 108 * 120 Mm |
| Material: | Zinc Alloy | Application: | Conference Multi-function Socket Box |
| Model Number: | BDP1201-R | Connector: | With Bottom Female Connectors |
| Grounding: | General Standard Grounding | ||
| Highlight: | pop up power outlet,table top electrical outlets |
||

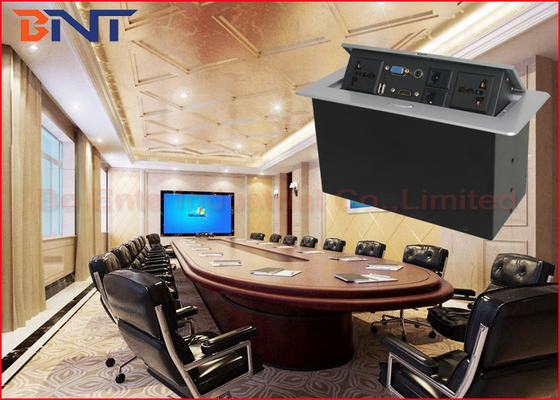

New Design Multi-function Conference Desktop Pop Up Power Socket Box Zinc Alloy Round
Introduction:
Hidden Desktop Socket series offer a solution of compact & beautiful desktop signal connection. The socket could be easily and conveniently connected with the electric equipments. This socket is mount on the tabletop and all connectors are hidden in the box, the user can press the pop up button to make the connector panel pop up. After used, also press the surface panel to let them hided. The socket bottom also has the connection panel to connected all modules directly. Concealed Desktop Socket is designed for connection of video, audio, computer video, network, telephone and power, etc. When the mechanism is opened, kinds of electric wires and data wires could be inserted and connected into the box.
Feature:
1, Socket hidden on the table. Press the button, the connection panel will be pop up to the desktop socket if would like to use. Press the surface panel to let the socket hidden into box after used.
2, High quality zinc alloy material panel and steel case box. Panel process galvanizing technology, oxidization with silver and black color. The surface zinc alloy panel has 3mm thickness.
3, Hidden socket into table underside to keep desktop surface more neat, modern and save more space.
4, To supply a fashion and modern environment for office and meeting room.
5, Adopt spring inside the bottom case, could pop all media socket up accordingly by button.
6, According to the customer's request, support with difference modules as they need.
7, Round or Square corner of tabletop power plugs is available for selection.
8, Silver or black socket of power and data connector is available.
9, Bottom with the female connection ports, can connected all modules directly.
Characteristic
1, high quality zinc alloy finishing panel
2, A=A strong carton with foam cushion and waterproof film
3, silver/black is available for color selection
4, Power plug and voltage could be changed accordingly.
5, OEM with logo on product and packing is available
6, Customized made is available
Application:
Hidden desktop socket is widely used on office furniture, high tier office, luxury conference table, hotel and multimedia classroom and training room.
Parameter:
| Item Name | Tabletop cable cubby |
| Model No. | BDP1201-R |
| Material | Zinc Alloy |
| Panel Size | 266 * 118 mm |
| Case Size | 221 * 108 * 120 mm |
| Panel Thickness | 3mm |
| Cut out Size | 225 * 110mm |
| Product Button Shape | Oval shape |
| Panel Corner | Round Corner / Square Corner |
| Power Support | 2* 3-pin Universal Power |
| Panel Configuraion | 2* Network (RJ45) + 1* HDMI + 1* VGA + 1* USB + 1* Audio 3.5 |
| Certification | CE/ROSH/UL/FCC/SASO |
| Rated Voltage | 110 ~ 240 VAC |
| Rated Current | 6 ~ 10 Amp |
| Bottom Connector | 2* Power + 2 * RJ45 + 1* USB + 1* HDMI + 1* VGA + 1* Audio 3. 5 |
| Color | Sliver |
| Other configuration | Yes, supply with different modules as needful |
Product Pictures:
