Product Details:
|
| Model: | MK3020 | Type: | Tabletop Hidden Socket |
|---|---|---|---|
| Style: | Manual Rotating Socket Outlet | Application: | Office Multiple Power Solution |
| Grounding: | Standard Grounding | Material: | Aluminum Alloy |
| Color: | Silver | Cable Length: | 1.5m |
| Rated Voltage: | 110V ~ 240V AC | Rated Current: | 10 Amp |
| High Light: | meeting table power socket,hidden power socket |
||

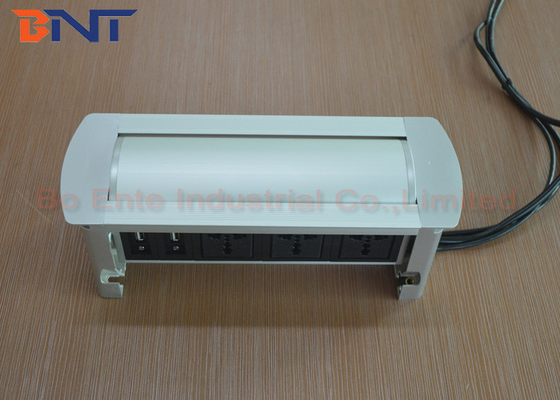

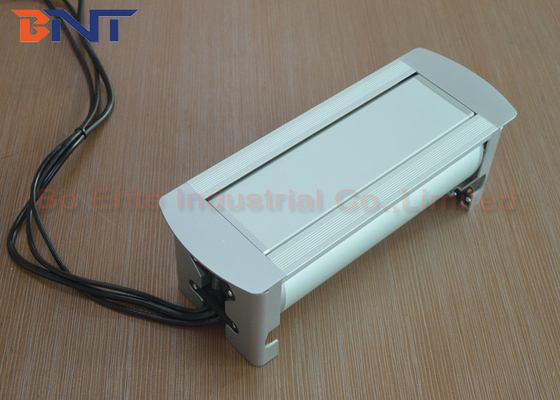

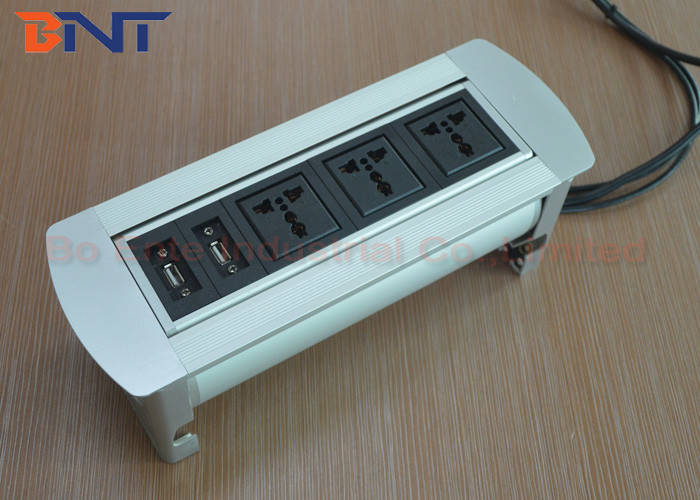

Desk Mounted Manual Rotating Power Socket Outlets with 3 * Power + 2 * USB Data
Introduction:
MK Series rotatable tabletop socket is mainly used in advanced office, hotel and home, training room, lecture room. Tabletop socket could be used with other installation surrounding together. When power with the desktop power socket, the indicator light is power on, product come to working station. Press the up/ down switch, all the multi-functional sockets could be rotate 180 degree to whatever position as needed. All configuration on desktop socket could be hidden under table if unused and would be rotating into the tabletop by automatically.
Application:
This tabletop hidden rotatable power socket is widely used for the high-class chairman room table, high-tier office table, conference room table AV solution, hotel room and work training room.
Feature:
1. Manual reverses when the decline is inhibited,humanized design to eliminate safety hazards
2. Anode oxidation process, anti-scratch, anti-dusty and anti-rust, upscale elegance
3. With manual revolving axis, can rotating by hand, easy operation
4. Save more space,after using you can close it with the button on panel to keep it anti-dusty, and the table tiny
5. With rotary positioning terminal, can limited the panel position after revolving 180 degree
6. Aluminum alloy wired drawing top panel, elegant fashion, simple appearance not easy to grind flower
7. With 1.5 meter extension connection cables
8. Convenient connection, just connection the connector cables directly under the table
Service:
1, Providing the best pre-sale service, any inquiry will be responded within 24 hours.
2, Providing the best after sale service, products have a one year warranty, any product quality problems will respond within 24 hours.
3, Provide the best quality, all inner box packaging are use the impact-resistant foam material protect and carton packing, kraft paper box packaging outside of the box.
4, Price concessions, all products are supplied in accordance with actual ex-works.
Specification:
| Type | Table pop up socket |
| Items | MK3020 |
| Styple | Tabletop hidden manual rotating power outlets |
| Grouding | Standard grounding |
| Panel power | 3* Universal power outlets |
| Cable plug | 1* Universal power plug |
| Panel connectors | 2* USB data |
| Cable connectors | 1* Power plug + 2* USB cable |
| Material | Aluminum alloy surface panel + plastic |
| Rotation Type | Manual rotating (Motorized rotating is selection) |
| Switch | Yes (without power switch is available) |
| Overturn angle | 180 degree |
| Color | Silver (black is available) |
| Panel size | 298*110 mm |
| Panel thickness | 3 mm |
| Cutout size | 266*103 mm |
| Box size | 264*100*103 mm |
| Cable length | 1.5 m |
Cautions:
Do not break any accessories and connection cables.
The panel should be installed by professional technician
Be cautious to the sharp edge of panel to avoid any possible cut damage
Keep dry, to be ventilated and keep away from humid, dust and heat.
Check carefully the power voltage and frequency before installation.
Must make sure it is power off before cleaning the outlet.
Pictures:
