Product Details:
|
| Item Name: | Motorized Monitor Lifting Mechanism | Style: | Ultra-thin Lcd Monitor Lift With 17.3 Inch FHD Screen |
|---|---|---|---|
| Model Number: | BLL-17.3 | Material: | Aluminum Alloy |
| Monitor: | 17.3 Inch Samsung Screen (16:9) | Resolution Ratio: | 1920*1080 |
| Panel Size: | 528*88*5mm | Box Size: | 517*75*600mm |
| Color: | Black/silver | Interface: | Hdmi / Usb +RS232 I/O |
| Pitch Angle: | 0~45 Degree | Power: | 110~220VAC |
| High Light: | electric monitor lift,hidden monitor lift |
||

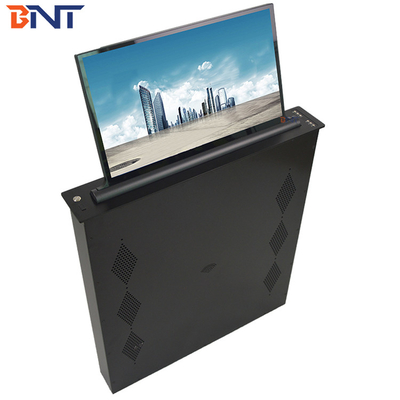

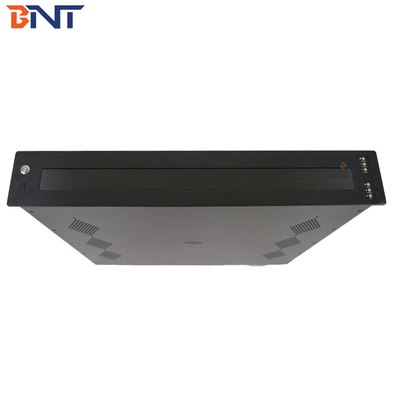

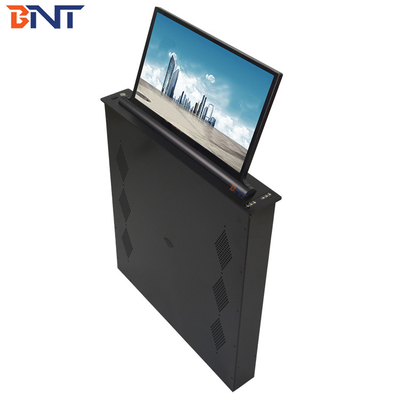

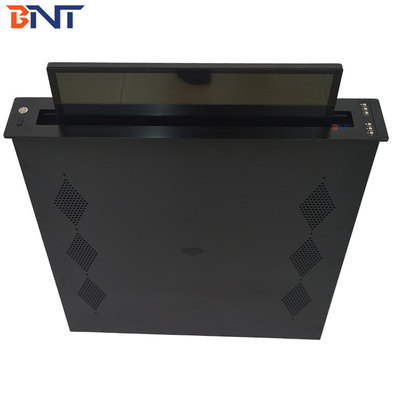

BNT 17.3 inch ultra-thin motorized monitor lift with full metal slim FHD LED screen BLL-17.3
Introduction:
BNT LCD monitor lift machine device, is a new office conference furniture furniture. This machine is consisting of slim LED monitor screen with the automatically lifting mechanism. It is mounting on the conference table and connected to the computer. Do not pile up many monitors on the desk, no need to worry about the theft or damage of the display. The LED monitor screen is hidden under the table surface when didn't used, at the same time, it also ensures that the table top is clean and beautiful and saves space. The utility model has the functions of theft prevention, dust prevention, keeping the table top smooth and beautifying the tabletop.
It is widely used for video conference system, TV conference system, and financial analyzing system and other commercial office or meeting room. Workable with central control, microphone, and other office equipment, paperless office software for office audio video solution.
Features:
1, Made of high-quality metal material, the screen monitor shell and the surface panel are making with aluminum alloy material.
2, Simply and compact design,elegant appearance and smart operation, high-end and classy.
3, High-thickness surface mounting panel, can capacity over 30 kg weight and keep the surface smooth and beautiful.
4, Smart protect design of the screen, when lifting down, the screen will automatic off power after 30 second, to avoid the impact of the surge current. 5, High-quality touch screen, made with full aluminum metal shell and matrix active TFT screen, also supply with multi-touch capacitive screen.
6, High torsional moment, super quiet synchronous motor, can loading over 25 kg weight screen lifting up without sounds.
7, Slim whole product design, all the product with screen and microphone thickness less than 9 cm.
8, Multi-control way design, supply with manual control, RS232 / RS485 control, wireless remote control and center control.
9, Super security electric design, all metal parts are connected to the grounding and prevent the electric shock away.
10, Electronic security approved, whole product are certificated of CE EMC and LVD.
specification :
| Item Name | Motorized monitor lifting mechanism |
| Style | Ultra-thin LCD lift with 17.3 inch FHD screen |
| Model | BLL-17.3 |
| Material | Aluminum alloy |
| Monitor | 17.3 inch Samsung screen (16:9) |
| Resolution ratio | 1920*1080 |
| Panel Size | 528*88*5mm |
| Box Size | 517*75*600mm |
| Panel Thickness | 5mm |
| Cutout Size | 540*77mm |
| Automatic Pitch Angle | 0~20 degree |
| Color | Black/ Silver |
| Interface | HDMI / USB +RS232 I/O |
| Control way | Remote control/Switch/ Central control |
| Power | 110V~240VAC / 50Hz |
| Power Consumption | 35~40W |
