Product Details:
|
| Item Name: | Hidden Lcd Monitor Lift | Style: | Motorized Lift With Screen + Motorized Microphone |
|---|---|---|---|
| Material: | Aluminum Alloy | Model Number: | BLM-17.3 |
| Panel Size: | 628*88*5mm | Box Size: | 608*75*660mm |
| Panel Thickness: | 5mm | Automatic Pitch Angle: | 20 Degree |
| Interface: | HDMI / USB +RS232 I/O+XRL | Control Way: | Remote Control/switch/central Control |
| Highlight: | electric monitor lift,hidden monitor lift |
||

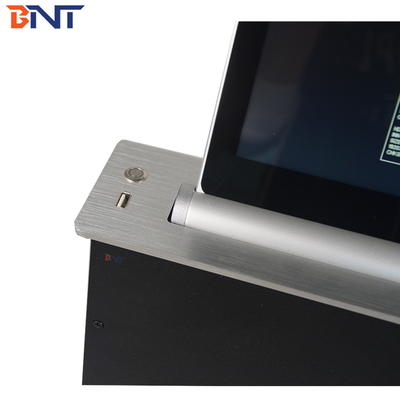

BNT ultra-thin design 45 degree electrical adjustable angle hidden motorized lcd monitor mechanism BLM-17.3
Introduction:

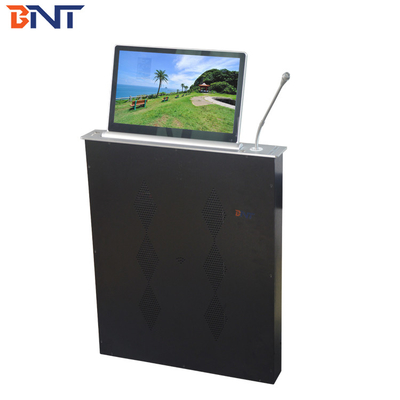

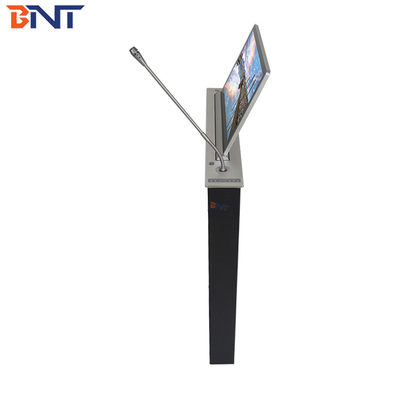

BLM-17.3 is designed as a advance integration hiding equipment of ultra-thin lcd Lift with screen + motorized microphone for conference audio video system.
15.6, 17.3,18.5 inch Full HD LED Screen for selection to meet the requirment of different monitor size.
Controlled conveniently by touch swith or remote control, the screen and mic could be rising up together form the conference tables automatically throgh the lift driving.
On the other way, they could also be hidden under the table automatically by the users' control.
once we finish using. With double super-quite synchrous motor, rasing up and down by tank chain and mechanical gear, the lift is much smooth and quiet when working.
It is widly use in conference system, video conference system, tv conference system, financial analyzing system,
advanced office system,lecture and training room with conference table& computer desk,etc.
Selling Point:
1. Full aluminum alloy finish, orrosion resistant, wear-resistant,smooth surface and not easy to scratch.
2. Ultra-thin lcd lift Design, only 8.8cm width of whole product , with 5mm thickness monitor
3. Motorized lift with 17.3inch FHQ screen and motorized microphone separete operation design, to meet the requirment of user's vision and talking
4. conference system microphone, can be control independently by button switch
5. Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working
6. Full HD LED Screen, high quality and brings a good viewing
7. Hidden design to save more space and makes a modern office environment
8. Ultra --thin monitor and lift body, elegant design and save space
9. 0-45 degree adjustable angle to make prefect viewing angle for users
10. Virtually Silent working with excellent working life.
11. works smoothly and quietly. Low noise which less than 30db
12. with protecting function of LCD monitors by cutting the electricity off automatically

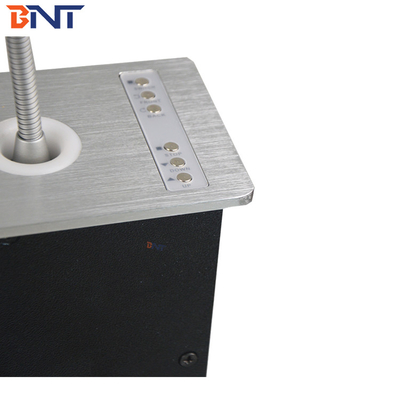

13. Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 central control..
14. Power plug and voltage could be changed according to user's requirment
specification:
| Item Name | lcd hidden lift |
| Style | Motorized lift with screen + motorized microphone |
| Model | BLM-17.3 |
| Material | Aluminum alloy |
| Monitor | 17.3 inch Samsung screen (16:9) |
| Microphone | Conference system Mic |
| Resolution ratio | 1920*1080 |
| Panel Size | 628*88*5mm |
| Box Size | 608*75*660mm |
| Panel Thickness | 5mm |
| Cutout Size | 610*77mm |
| Automatic Pitch Angle | 20 degree |
| Color | Black/ Silver |
| Interface | HDMI / USB +RS232 I/O+XRL |
| Mic Function | Automatic straighten microphone up function Screen Lift & Mic Lift working together |
| Control way | Remote control/Switch/ Central control |
