Product Details:
Place of Origin: CHINA
Brand Name: Boente
Certification: CE, ROHS, CB, CCC, ISO9001
Model Number: AML-13.3
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Packaging Details: 52*22*75cm/pcs
Delivery Time: 5-8 working day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 800 units/month

Integrated Ultra Light Motorized Retractable Monitor Lift

Description
Material: Full Aluminum Alloy Product: Motorized Monitor Lift
Product Size: 13.3 Inch Panel Size: 40*8cm
Case Size: 38.2*7.1*62cm Monitor: 13.3 Touch Screen
Screen Size: 32.8*20.8cm Touch Point: 12 Point Multi Touch
Monitor Tilt Angle: 15-45 Degree Warranty: 1 Year
High Light:

Motorized Retractable Monitor Lift

,

Light Retractable Monitor Lift

,

Integrated Retractable Monitor Lift

BNT 2021 new product ! Ultra Light Motorized retractable monitor lift integrated with 13.3 touch screen AML-13.3



Introduction:

BNT 2021 new product, ultr light motorized retractable screen monitor lift , ultra light desgin, made of full aluminum alloy material, included product pane, monitor shell and body case. Total product is only 8kgs. Ultra thin design,the product thickness is only 8cm. Integrated with 13.3 inch full HD touch screen, available for 12 points finger touch operation.

Display monitor on meeting table, motor drive monitor lifting up and down. Electrical adjust monitor from 0~30 degree tilt.



Feature:

1, Ultra light desgin, made of full aluminum alloy

2, Ultra thin desgin, only 8cm product thickness

3, Integrated with 13.3 touch screen, 12 point multi touch screen

4, Motor drive design, make monitor raising up and lifting down to present retractable screen.

5, Monitor angle electrical adjustable, monitor tilt 0 to 15 degree automatcially and 15-30 degree motoried adjutable.

6, Anti-pinch hand safe protection desgin, workable for education project

7, Could be groups control via RF remote control, central control, wireless network control.



Functionality

LCD motorized monitor lift with HD screen all ine one lifting system

Monitor inclinates automatically to a pre-adjusted angle

12V step monitor with simultaneous drive for multiple movements

Second motorization for tile mechansim

Supply with 15.6inch, 17.3inch,18.5inch full HD LED screen

Customized required with touch screen, all in one PC monitor, Microphone

Quality approved by CE & IECEE



Application:

BNT retractable monitor lift  is widely used on conference system, like video conference system, tv conference system, financial analyzing system, advanced office system, lecture and training room with conference table& computer desk together.



Data sheet:

Product name motorized retractable monitor lift
Model No. AML-13.3
Material full aluminum alloy
Panel Size 400*80mm
Case Size 382*71*620mm
Panel thickness 5mm aluminum panel
Integrated monitor 13.3 inch LED screen
Resolution 1920*1080
Screen Size 328*208mm
Screen Tilt Angle Automatic 0-15 degree /Electricl adjustable 0-30 degree
Color brushed aluminum silver / aluminum black matte
Connection Interface HDMI, USB, RS232 I/O
Panel Button Detail UP/DOWN/STOP for monitor operation
Titt /back for angle adjustable
Adjust brightness and color for screen
Signal switching for HDMI to VGA
Integrated item selection full HD touch screen
conference system discussion/video/voting microphone
full HD camera
smart AIO PC
office automatic paperless system
Safe Protection Anti-pinch hand protection
G.Weight 11kgs
Power Supply 220V/50HZ, 110v/60HZ
Max Power 28W
Service Life Above 20000 times
Working Sound Less than 15 decibels
Certification CE,ROHS, IECC, CB, FCC
Control Method button on top panel, remote control, central control, wirless ipad network control
Product Function major lift monitor, hidden display monitor on meeting table, automatic lifting monitor up/down/stop accordingly, integrated with microphone, touch screen, PC and camera for audio video conference solution
Application conference room, meeting room, trainning room, boardroom, Army command room, Presidential election room, news release seminar room,school Academic seminar room,office senior executive meeting room, hotel



Product Picture:

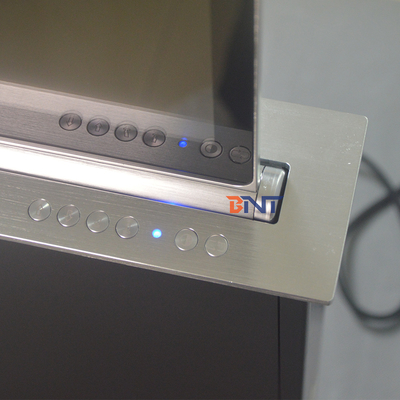

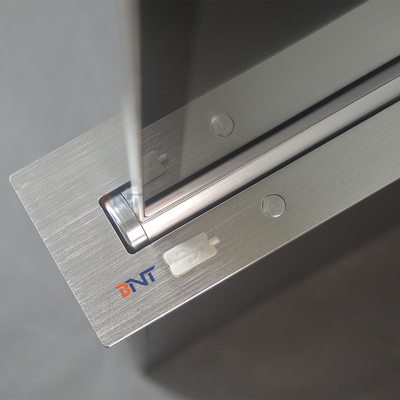

Integrated Ultra Light Motorized Retractable Monitor Lift 0

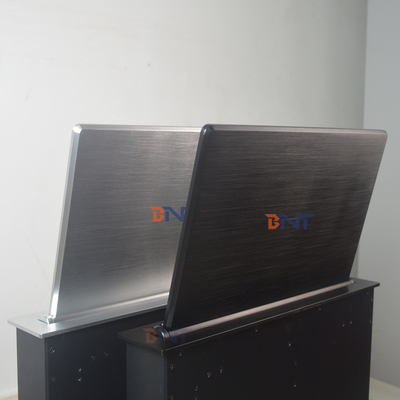

Integrated Ultra Light Motorized Retractable Monitor Lift 1

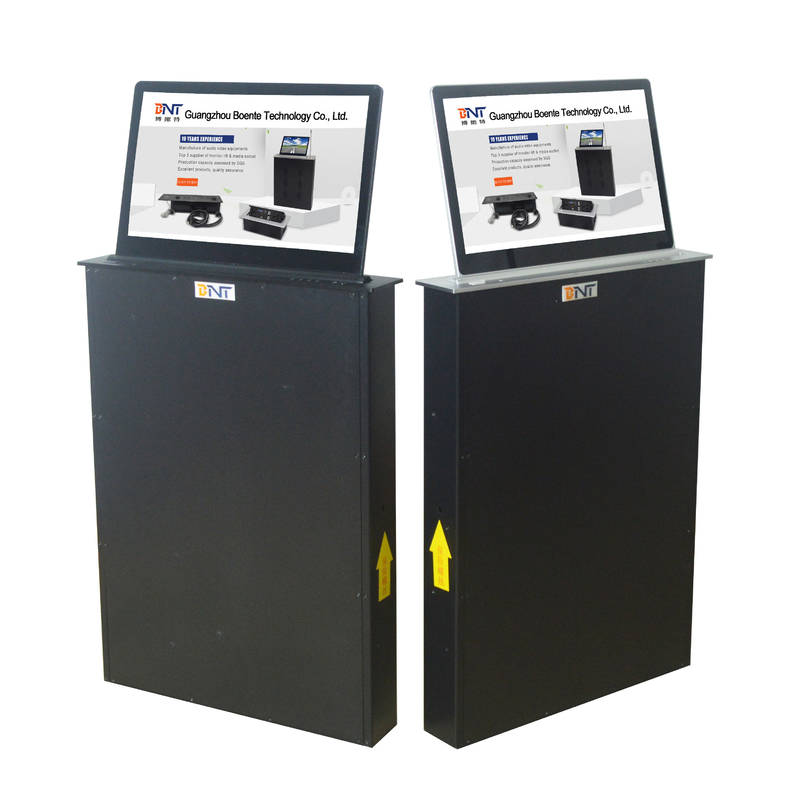

Integrated Ultra Light Motorized Retractable Monitor Lift 2
