Product Details:
|
| Product Name: | LCD Motorized Monitor Lift | Material: | Aluminum Alloy(panel+box) |
|---|---|---|---|
| Color: | Wire Drawing Silver/Black | Monitor: | 17.3 Inch FHD Screen (16:9) |
| Panel Size: | 655*80*5mm | Box Size: | 643*71*730mm |
| Resolution Ratio: | 1920*1080 | Automatic Pitch Angle: | 15 Degree |
| Net Weight: | 16kgs | Interface: | HDMI+USB+RS232 I/O+XRL |
| Microphone: | Conference Mircophone | Work Type: | Microphone&monitor Work Separately |
| Highlight: | LCD Motorized Monitor Lift,Conference Motorized Monitor Lift,Hand Protection Motorized Monitor Lift |
||

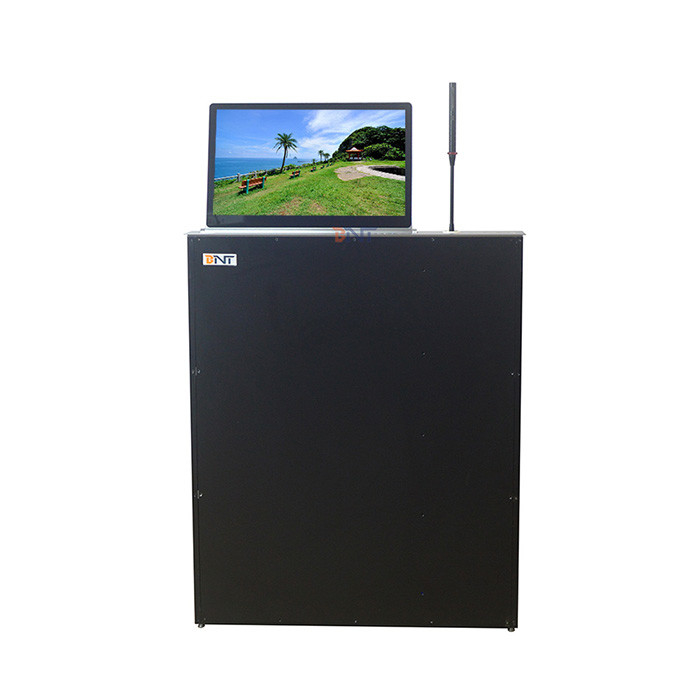

Hand protection system conference table LCD motorized monitor lift with pop up screen and microphone
Introduction:
AML-17.3MS is a table lcd motorized lift for conference system including pop up screen and microphone .
With separate control sytem, the screen and microhpone could work separately.
Screen have size 13.3/15.6/17.3/18.5/21.5/23.6 inch for selection.
Microphone have the function of automatic straight up.
Selling Point:
Ultra-thin Design, only 8cm width of panel
Motorized lift with 17.3 inch FHQ screen + motorized microphone lift up and down system
Motorized by tank chain and mechanical gear, good quality and smooth and quiet when working
Hidden conference table design
0-20 degree adjustable angle to make prefect viewing angle for users
works smoothly and quietly

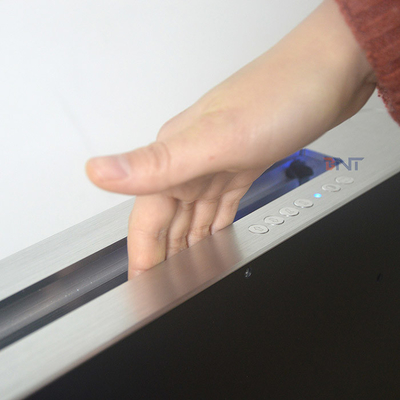

with protecting function of LCD monitors by cutting the electricity off automatically
Control system: Touch Switch on LCD motorizedLift panel, RF remote control, RS232 AND rs 485 central control..
Power plug and voltage could be changed according to user's requirment
Detail Parameter:
| Item Name | LCD motorized monitor lift |
| Model | AML-17.3MS |
| Material | Aluminum alloy panel+case |
| Monitor | 17.3 inch FHD screen |
| Microphone | Goose Neck Microphone (40cm) |
| Resolution ratio | 1920*1080 |
| Panel Size | 655*80*5mm |
| Box Size |
643*71*730mm |
| Panel Thickness | 5mm |
| Cutout Size | 645*73mm |
| Display adjust angle | 0-20 degree |
| Color | Wire drawing silver/Black |
| Interface | HDMI+RS232 I/O+USB+XRL |
| Control way | Remote control/ Switch/ Central control |
| Type | Monitor & MIC work sperately |
