Product Details:
|
| Style: | LCD Monitor Lift | Panel Size: | 620*80mm |
|---|---|---|---|
| Case Size: | 590*69*600mm | Panel Thickness: | 5mm |
| Screen Tilting Angle: | 20 Degree | Monitor: | 21.5" FHD Screen |
| Resolution: | 1920*1080 | Color: | Arushed Aluminum Black |
| Control Way: | Wireless Remote Control | Application: | Meeting |
| High Light: | electric monitor lift,hidden monitor lift |
||
Brushed Aluminum 21.5" Electrical Lifting LCD Monitor Lift For Meeting Room 476*268mm Viewing Area
Introduction:
Integrated 21.5 inch FHD screen LCD monitor Lift system is designed for advanced audio video conference system. When ordinary meeting, the monitor is inside the LCD monitor lift to keep the tabletop even and neat; when multimedia meeting, the monitor can be lift up separately. All LCD display the multimedia information including meeting content, information hint and picture information,sound, video and audio.
It is widely used for video conference system, TV conference system, and financial analyzing system and other commercial office or meeting room. Workable with central control, microphone, and other office equipment, paperless office software for office audio video solution.
The lift with screen adopts synchronous orbit lifting principle. It runs monitor lifting smoothly, quietly, and provided with the protection function for LCD monitors by cutting the power off automatically. The panel switch adopts the durable and excellent material’s nice-looking touch switch.
Lifting equipment support RS232 communication protocols. It can be distantly controlled by central control. It supports wireless connection too, possessing the function of organizing the monitors into groups freely.
Feature:
1, Ultra-thin Design, only 8cm width of whole product, completely lifting equipment with 21.5" FHD touch screen.
2, Equipped with VGA or HDMI, USB, XRL,RS232 data interfaces for convenient data access
3, Aluminum oxidation with drawing polishing surface process to make panel and monitor shell smooth and bright, ensure elegant and high grade appearance
4, Electricity supply and shut down design, the screen will be power off once lifting back to mechanism. And screen will be supplied with electricity if complete open the mechanism.
5, Custom Color aluminum anodization. LCD monitor lift is available for aluminum silver, black matte, aluminum gold, oxidation titanium.
6, Complicated with paperless office software, Crestron central controller and wireless automatically mobile phone controller.
Customized Option:
| 1 | Touch Screen (15.6/17.3/18.5/21.5) |
| 2 | Customized cover plate with microphone |
| 3 | Customized cover plate with USB connector |
| 4 | Customized cover plate with Computer Switch |
| 5 | HDMI cable with input for underneath installation |
| 6 | Housing& cover plate could be anodized in different color |
Application:
LCD monitor lift purpose on conference room, meeting room, hotels, school, training room, financial analyzing room and other advanced office. It could complicated with all brands LED monitor, conference discussion microphone, digital camera, Crestron central control, wireless authentically control system to realized smart paperless office audio video system.
Detail Parameter:
| Item Name | Ultra-thin LCD Monitor Lift with Touch Screen |
| Model No. | BLL-21.5 |
| Materail | Brushed aluminum alloy finishes |
| Color | Brushed aluminum black |
| Panel Dimension | 620*80m |
| Panel Thickness | 5mm |
| Box Dimesnion | 590*600*69cm |
| Monitor | 21.5" FHD Touch screen |
| Screen Thickness | 12mm |
| Resolution | 1920*1080 |
| Screen Tilting Angle | 20 degree |
| Data Interface | VGA Input, USB input, RS232 I/O |
| Customized Service | Could integrated with touch screen, microphone, front camera, all in one screen |
| Control system | Touch switch, wireless remote , central control RS232 |

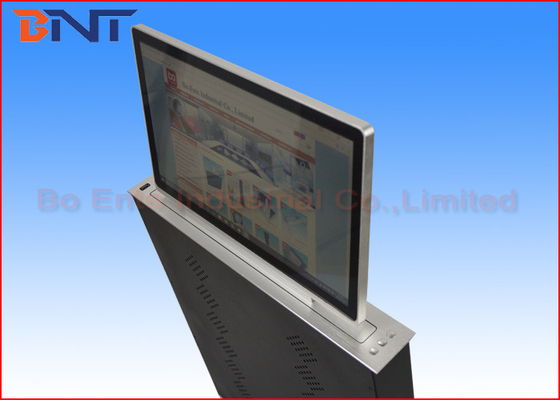

Product Pictures:
